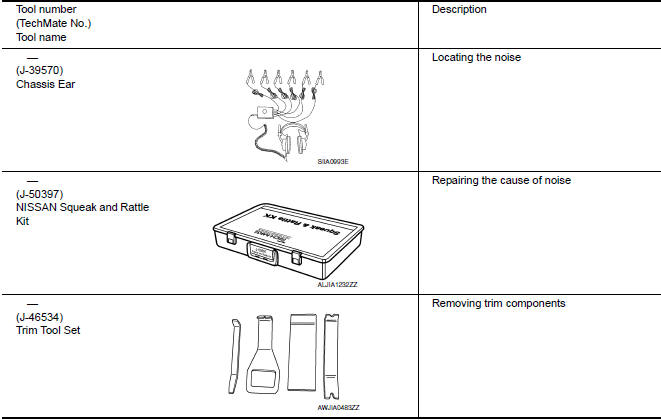

Special Service Tool
The actual shapes of the tools may differ from those illustrated here.

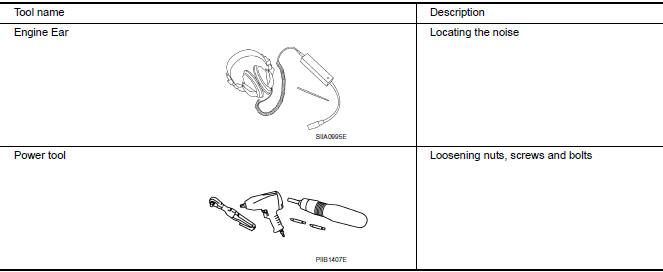

Commercial Service Tools
Squeak and rattle trouble diagnoses
Work Flow
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist
when the noise occurs. Use the Diagnostic Worksheet during the interview to
document the facts and conditions when the noise occurs and any customer's
comments; refer to RF-64, "Diagnost ...
Headlamp (LO) circuit
Description
The IPDM E/R (intelligent power distribution module engine room) controls the
headlamp low relay based on inputs from the BCM over the CAN communication
lines. When the headlamp low relay is energized, power flows through fuses 51
and 52, located in the IPDM E/R. Power then flows ...
