Removal and Installation
REMOVAL

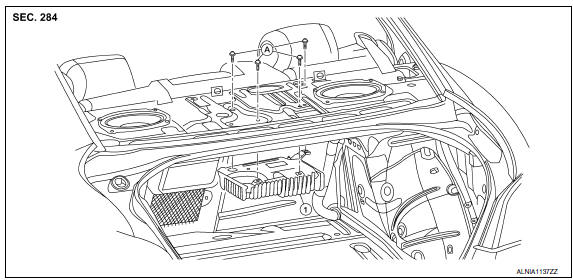

NOTE: If removing the BOSE speaker amp. bracket, it is necessary to remove the parcel shelf finisher. The BOSE speaker amp. can be removed without removing the BOSE speaker amp. bracket.
INSTALLATION
Installation is in the reverse order of removal.
Parking lamp circuit
Description
The IPDM E/R (intelligent power distribution module engine room) controls the
tail lamp relay based on inputs from the BCM over the CAN communication
lines. When the tail lamp relay is energized, power flows through fuses 46
and 47, located in the IPDM E/R. Power then flows to the ...
C1712 - C1715, C1720 - C1723, C1724 - C1727 transmitter malfunction
Description
One or more transmitters are malfunctioning internally.
DTC Logic
NOTE: The Signal Tech II Tool (J-50190) can be used
to perform the following functions. Refer to the Signal Tech II User Guide
for additional information.
Activate and display TPMS transmitter IDs
...
P1726 throttle control signal
Description
The electric throttle control actuator consists of
throttle control motor, accelerator pedal position sensor, throttle
position sensor, etc. The actuator sends a signal to the ECM, and ECM sends the
signal to TCM via CAN
communication.
DTC Logic
DTC DETECTION LOGIC
DTC CONF ...
