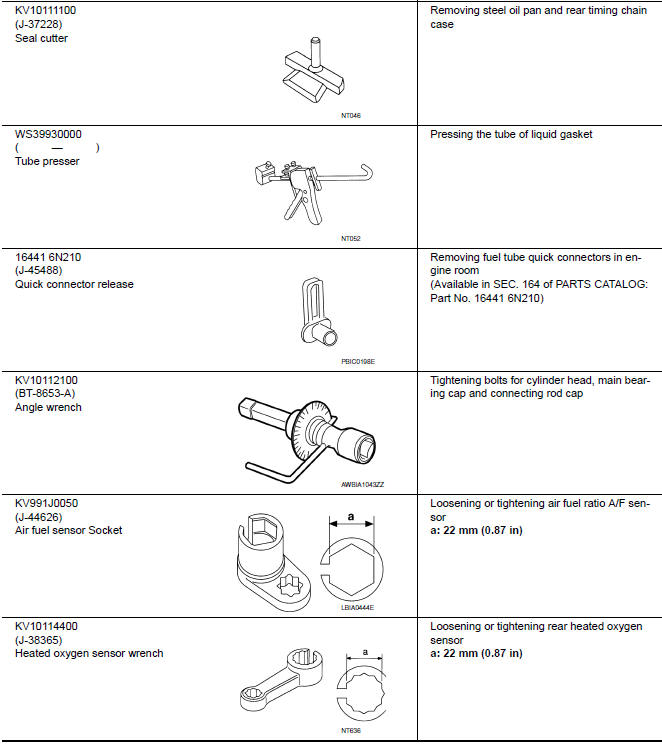

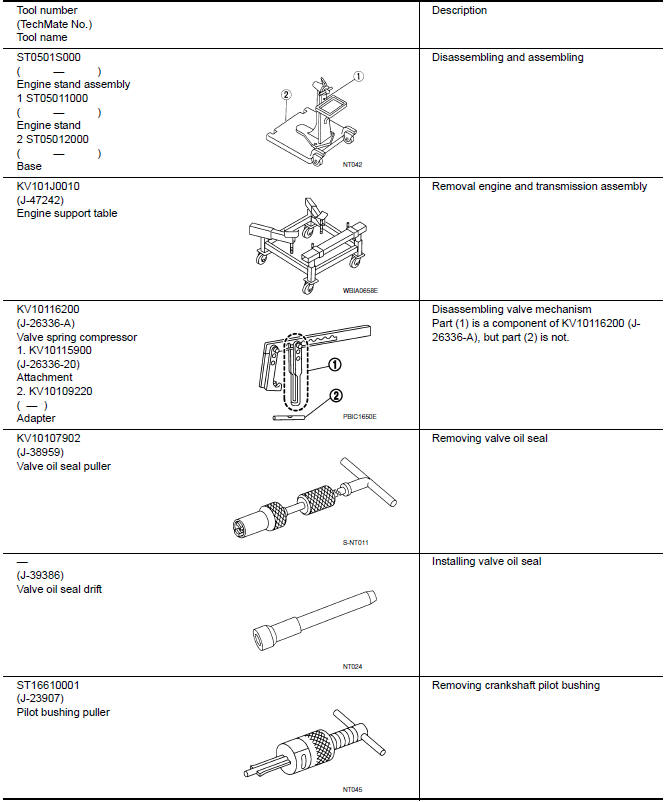

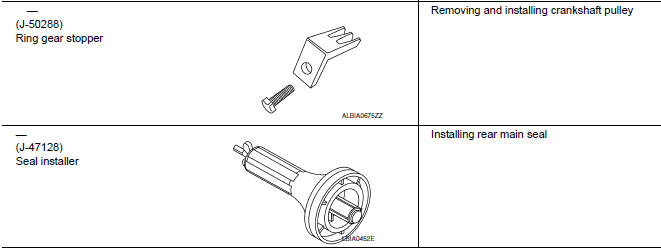

Special Service Tool
The actual shapes of the tools may differ from those illustrated her

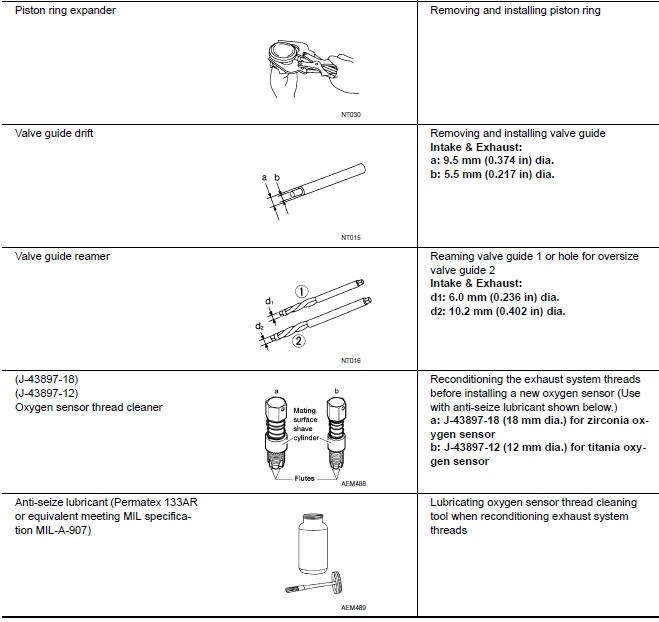

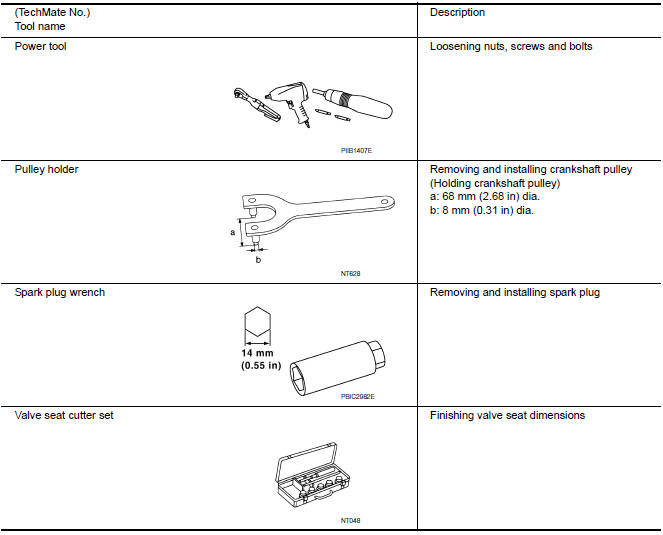

Commercial Service Tool
