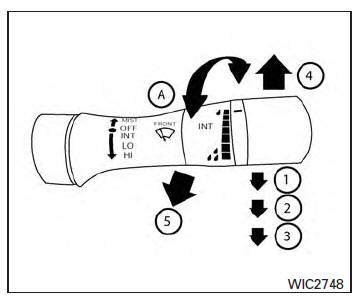

Type A (if so equipped)
The windshield wiper and washer operates when the ignition switch is placed in the ON position.
Push the lever down to operate the wiper at the following speed:

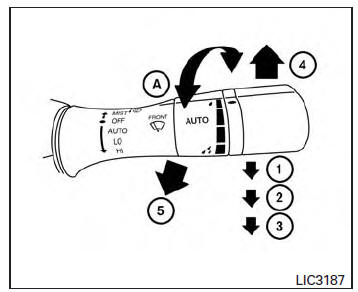

Type B (if so equipped)
Push the lever up 4 to have one sweep operation (MIST) of the wiper.
Pull the lever toward you 5 to operate the washer. The wiper will also operate several times.
WARNING
In freezing temperatures the washer solution may freeze on the windshield and obscure your vision which may lead to an accident. Warm the windshield with the defroster before you wash the windshield.
CAUTION
NOTE:
If the windshield wiper operation is interrupted by snow or ice, the wiper may stop moving to protect its motor. If this occurs, turn the wiper switch to the OFF position and remove the snow or ice that is on and around the wiper arms. In approximately 1 minute, turn the switch on again to operate the wiper.
