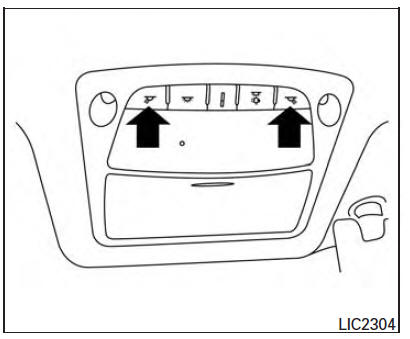

To turn the map lights on, push the switches. To turn them off, push the switches again.
CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.
Personal lights

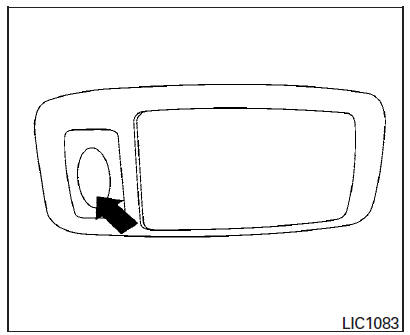

To turn the rear personal lights on, push the switch. To turn them off, push the switch again.
Trunk light
The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
For additional information, refer to "Exterior and interior lights" in the "Do-it-yourself" section of this manual.
AV control unit
Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
DTC Index
Self-diagnosis results display item
...
Headlamp (LO) circuit
Description
The IPDM E/R (intelligent power distribution module engine room) controls the
headlamp low relay based on inputs from the BCM over the CAN communication
lines. When the headlamp low relay is energized, power flows through fuses 51
and 52, located in the IPDM E/R. Power then flows ...
ABS branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the ABS actuator and
electric unit (control unit) for damage, bend
and loose connection (unit side and connector side).
...
