Nissan Maxima Service and Repair Manual: Intelligent key system/engine start function

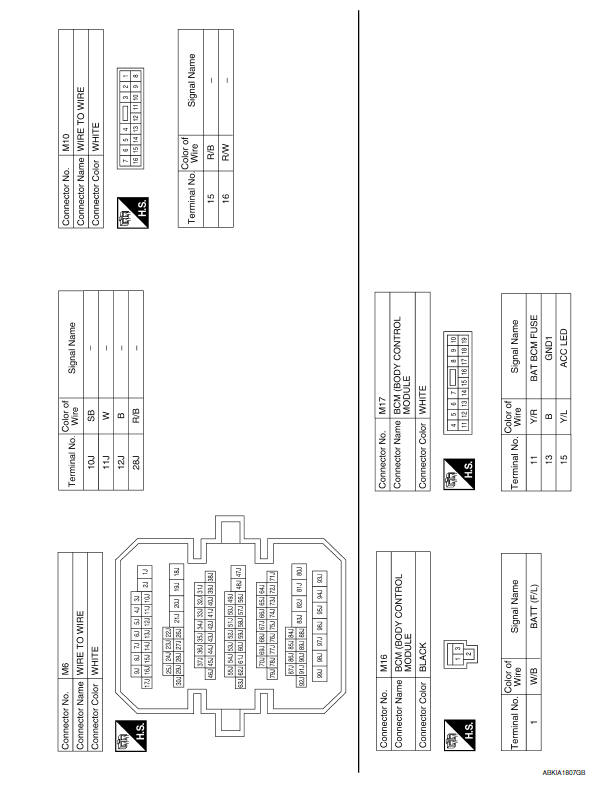

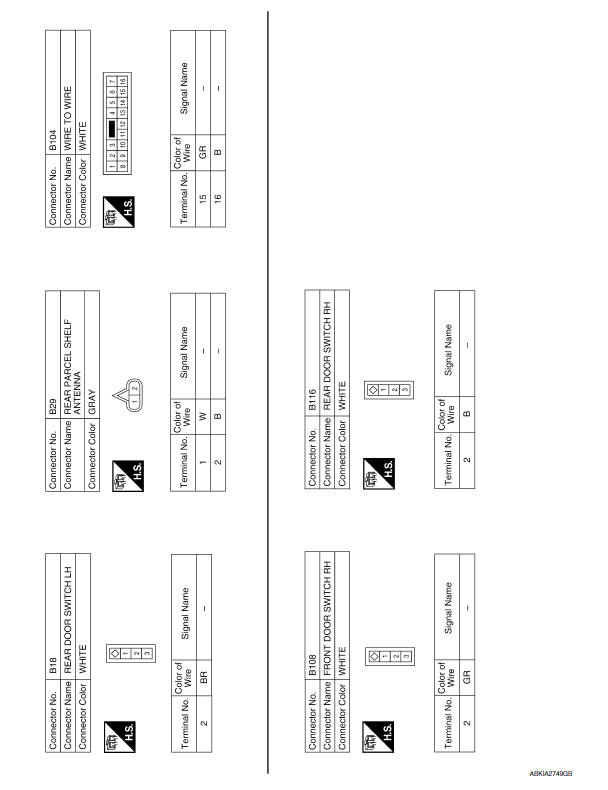

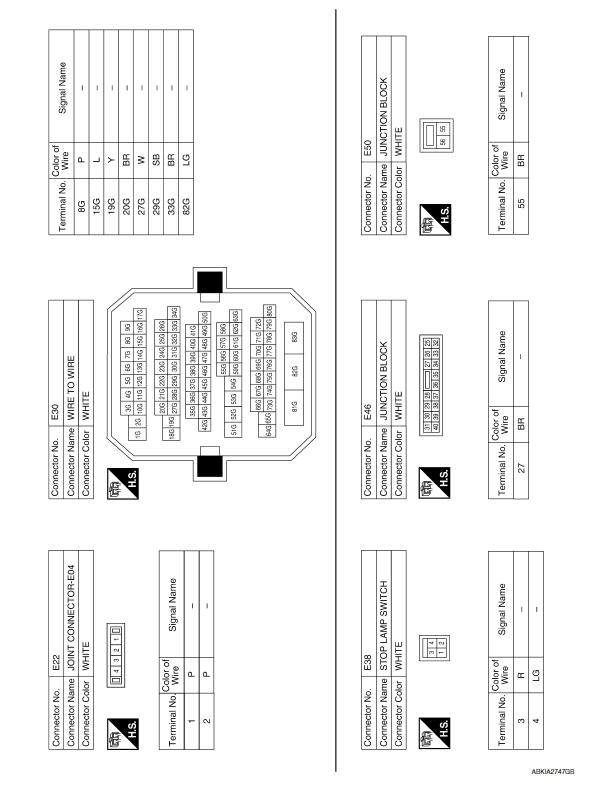

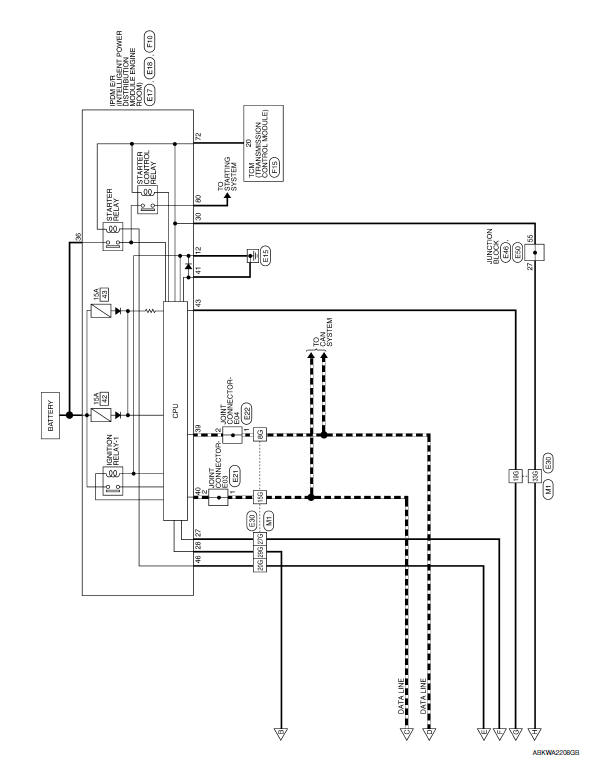

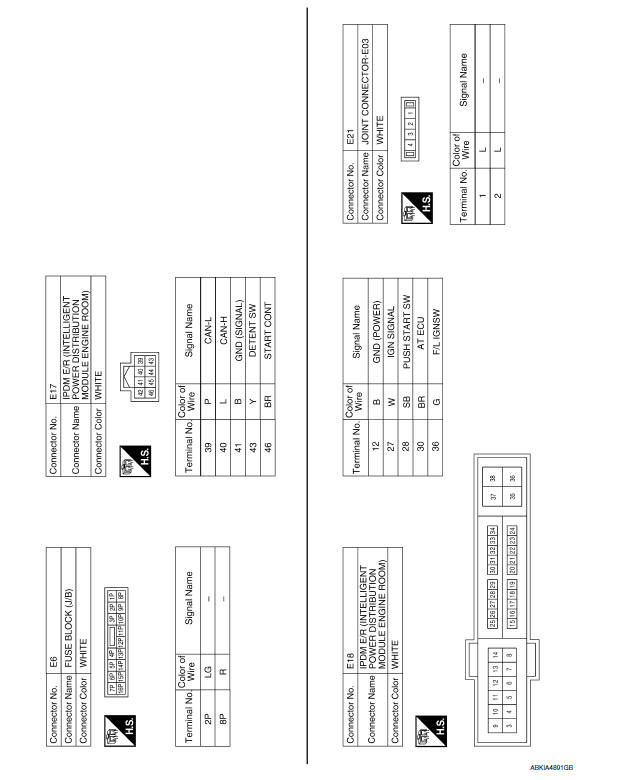

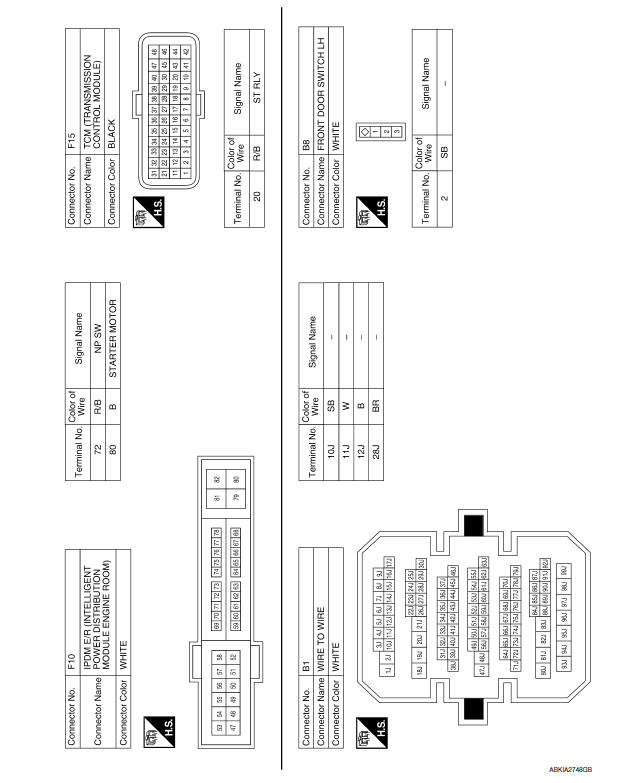

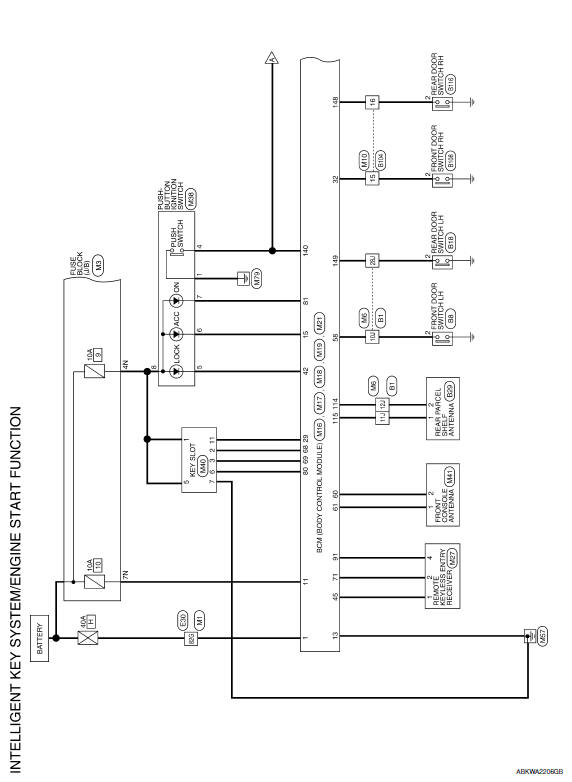

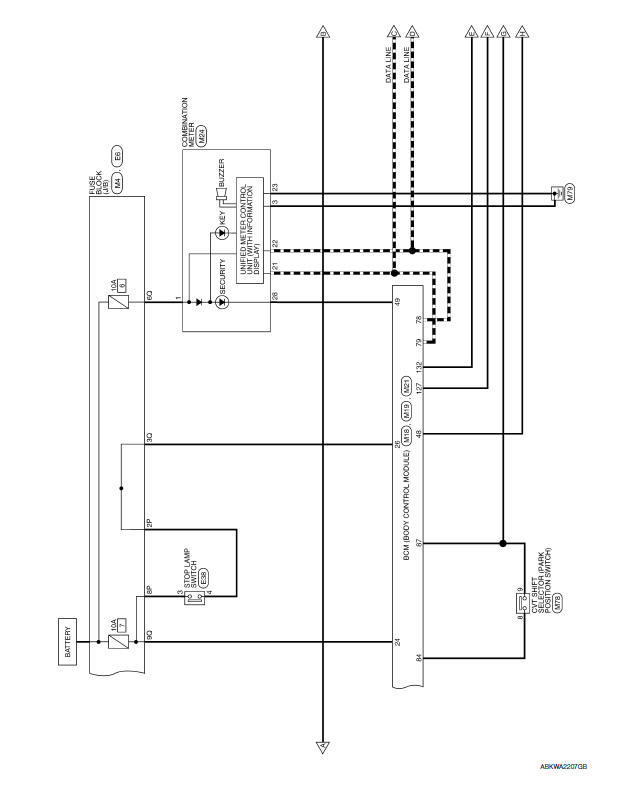

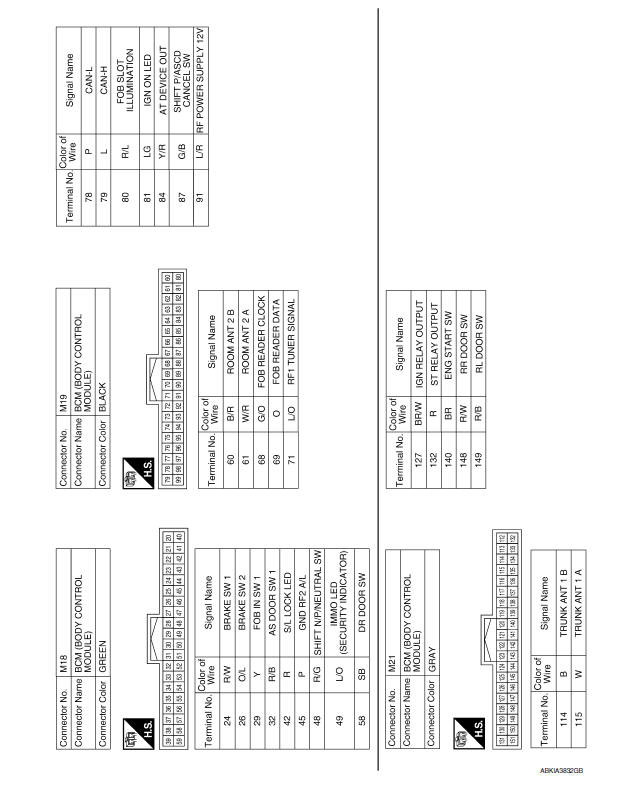

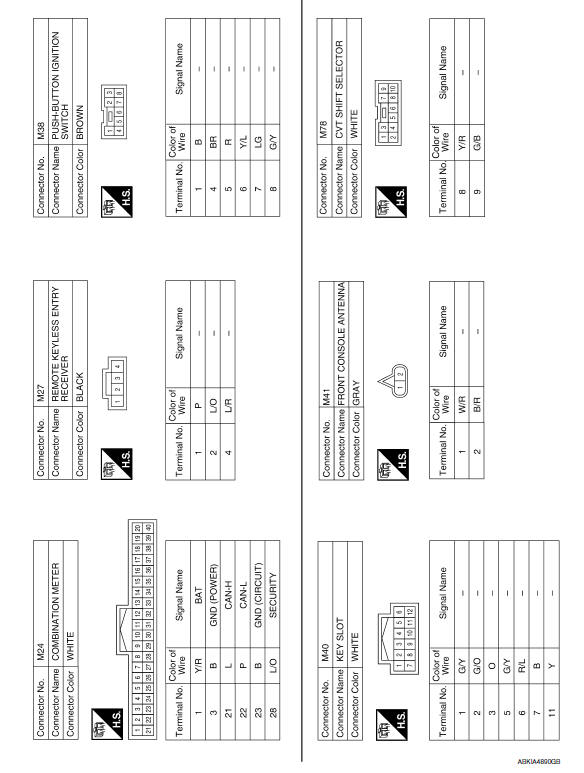

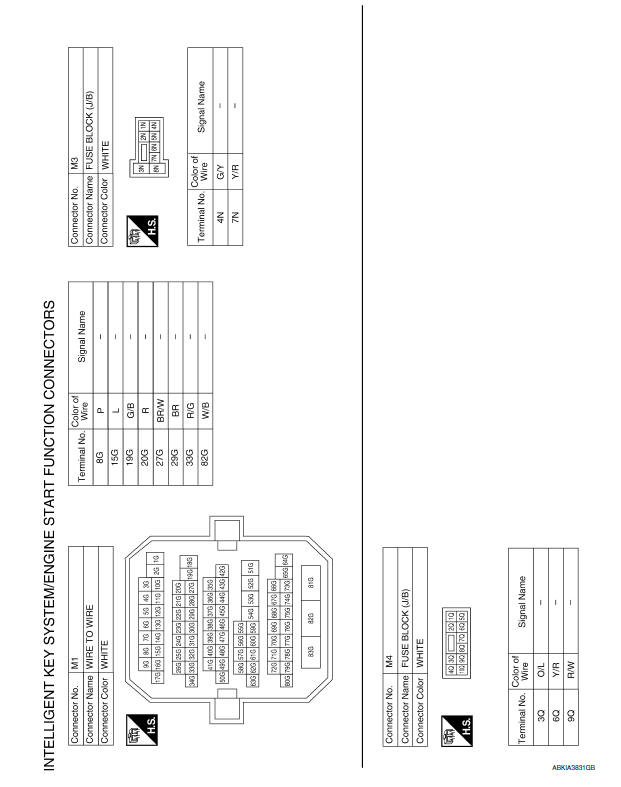

Wiring Diagram
Vehicle security system
Wiring Diagram
...
