Nissan Maxima Service and Repair Manual: Removal and installation
SUNROOF UNIT ASSEMBLY
Inspection
WIND DEFLECTOR
- Open glass lid assembly fully.
- Visually check for proper installation, damaged/deteriorated
components, or foreign objects within mechanism.
Correct as required for
smooth operation.
- Check for grease at the wind deflector arm (1) and pivot areas. If
necessary, apply a sufficient amount of grease for non-binding
operation.
:Front
- Check that the wind deflector (1) moves freely within the sunroof
unit assembly while manually pressing down and releasing. If a
malfunction is detected, remove the sunroof unit assembly and visually
inspect. If damage is found, replace either wind deflector (1) or sunroof
unit assembly as required.
:Front
LINK AND WIRE ASSEMBLY
NOTE: Before replacing a suspect part, make
sure it is the source of noise being experienced.
- Check link to determine if coating film has peeled off excessively
enough that substrate is visible. Check also to determine if link is the
source of noise. Replace as necessary.
- Visually check to determine if a sufficient amount of grease has
been applied to wire or rail groove. If not, add grease as required.
- Check wire for any damage or deterioration. If any damage is
found, replace sunroof unit assembly.
WEATHERSTRIP
- Visually check weatherstrip for damage, deterioration, or
deformation.
- Check for leakage around glass lid assembly.
- Close glass lid assembly.
- Pour water around surface to determine area of concern.
- For gaps or misalignment, adjust glass lid assembly to
specifications. Refer to ADJUSTMENT in this section.
- For damaged sealing surfaces, either replace glass lid assembly
RF-72, "Removal and Installation", or repair the panel.

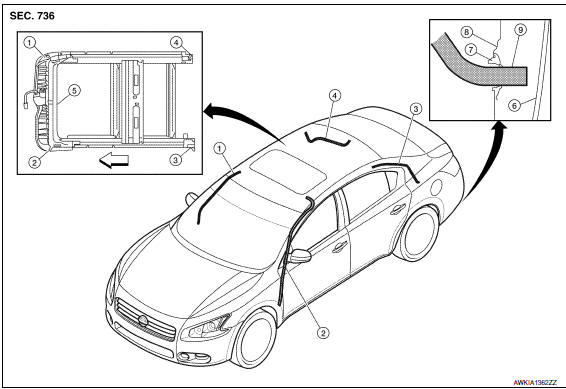

DRAIN HOSES
- Drain hose front (RH)
- Drain hose front (LH)
- Drain hose rear (LH)
- Drain hose rear (RH)
- Sunroof unit assembly
- Fascia
- Seal
- Fender
- Drain hose
Front
- Remove the headlining. Refer to INT-33, "Removal and Installation".
- Visually check drain hoses for:
- Proper connection at sunroof unit assembly drain hose
connector(s).
- Damage, pinch, cracks, deterioration.
- Proper fastening and routing on body panels.
- Pour water through drain hoses to determine watertight
performance.
If damaged or leaking portions in any drain hose is found,
replace entire drain hose as necessary.
ADJUSTMENT
CAUTION:
- Always work with a helper.
- Handle glass lid assembly with care to prevent damage.
NOTE:
- For easier and more accurate installation, always mark each
point before removal.
- After any adjustment, check sunroof operation and glass lid
assembly alignment

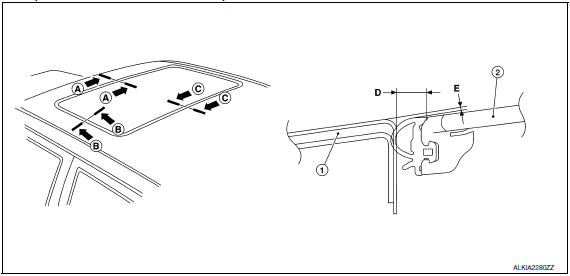

Inspect then measure the gap and surface height difference between the roof
panel and glass lid assembly; compare to specifications. Determine which
procedure to follow based on results of measurements.
- Roof panel
- Glass lid assembly
Gap adjustment (Front and Rear)
- Open sunshade assembly (1).
: Front
- Tilt glass lid assembly up, then release side trim cover (2) and
set aside.
- Loosen glass lid assembly bolts (A) (2 each on left and right
sides), then tilt glass lid assembly down.
- Manually adjust glass lid assembly from outside of vehicle so
gaps A-A and C-C are within specifications. NOTE:
Temporarily snug glass lid assembly bolts to prevent movement between
each adjustment.
- Tilt glass lid assembly up and down several times using sunroof
switch to check that it operates smoothly.
- Tilt glass lid assembly up and tighten bolts to specification.
NOTE: First tighten left front bolt, then
right rear bolt on glass lid assembly to prevent uneven torque while
tightening remaining bolts.
- Attach side trim cover, then tilt glass lid assembly down.
Gap Adjustment (Sides)
- Remove headlining. Refer to INT-33, "Removal and Installation".
- Loosen sunroof unit assembly and sunroof side bracket bolts.
- Carefully slide sunroof unit assembly side to side or add shims
until gap is within specifications. NOTE:
Temporarily snug sunroof unit assembly bolts to prevent movement between
each adjustment.
- Tilt glass lid assembly up and down several times using sunroof
switch to check that it operates smoothly.
- Tighten sunroof unit assembly and sunroof side bracket bolts.
NOTE: First tighten left front sunroof unit
assembly bolt, then right rear to prevent uneven torque while tightening
remaining bolts.
- Install headlining. Refer to INT-33, "Removal and Installation".
Height Adjustment
- Tilt glass lid assembly up and down several times using sunroof
switch to check that it operates smoothly.
- Check height difference between roof surface and glass lid
assembly surface, then compare to specifications.
- If necessary, adjust height difference by using the following
procedure.
- Loosen glass lid assembly bolts.
- Manually raise/lower glass lid assembly until height difference is
within specification.
NOTE: If necessary, shims may be added
between sunroof unit assembly and roof to increase adjustment range. Refer to
RF-72, "Removal and Installation".
Temporarily snug sunroof unit assembly bolts to prevent movement between each
adjustment.

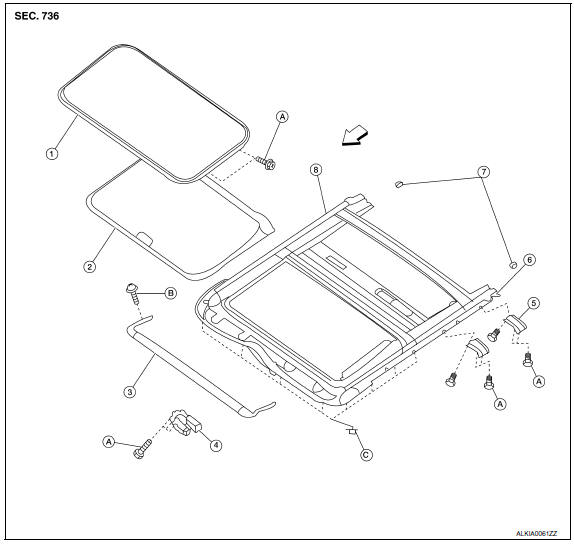

Exploded View
- Glass lid assembly
- Sunshade
- Wind deflector
- Sunroof motor assembly
- Sunroof side bracket
- Drain hose connector
- Sunshade stopper
- Sunroof unit assembly
- Bolt
- Screw
- Nut
Front
Removal and Installation
CAUTION:
- After installing either sunroof unit assembly or glass lid
assembly, check gap/height adjustments and operation to make sure there
is no malfunction.
- Always work with a helper.
- Handle glass lid assembly with care to prevent damage.
- When taking sunroof unit out, use shop cloths to protect the
seats and trim from damage.
SUNROOF UNIT ASSEMBLY
Removal
- Close glass lid assembly.
- Remove headlining. Refer to INT-33, "Removal and Installation".
- Disconnect drain hoses.
- Remove screws (A), then pull sunroof switch bracket (1) away from
sunroof unit assembly (2).
Front
- Disconnect the harness connector from the sunroof motor.
- Remove bolts on the front end and side rails of the sunroof unit
assembly.
- Remove front sunroof side bracket bolts.
- Remove rear sunroof side bracket bolts and remove sunroof unit
assembly from roof panel.
- Remove sunroof unit assembly through the passenger compartment
while being careful not to damage the seats and trim.
Installation
- Loosely tighten the rear sunroof side bracket bolts to the sunroof
unit assembly side rails.
- Bring sunroof unit into passenger compartment and loosely tighten
rear sunroof side bracket bolts to roof panel while supporting front.
- Align the sunroof unit assembly front end rail and side rails with
the locator pins, then loosely tighten the bolts.
- Install remaining sunroof side brackets and loosely tighten bolts.
- Tighten the sunroof unit assembly front end and side rail bolts
diagonally to the specified torque.
- Tighten the front sunroof side bracket bolts at the vehicle side
first, then at the side rail end.
- Tighten the rear sunroof side bracket bolts at the vehicle side
first, then at the side rail end.
- Connect the harness connector to the sunroof motor.
- Install sunroof switch bracket.
- Connect drain hoses.
- Install headlining. Refer to INT-33, "Removal and Installation".
GLASS LID ASSEMBLY
Removal
- Open sunshade (1), then close glass lid assembly.
Front
- Slide the side trim covers (2) (LH/RH) inward, then release them
from the glass lid assembly inside edge and set aside.
- Remove the bolts (A) and glass lid assembly from sunroof unit
assembly.
Installation
- Position glass lid assembly to sunroof unit assembly.
- Tighten glass lid assembly bolts to specification.
NOTE: First tighten left front bolt, then right
rear bolt on glass lid assembly to prevent uneven torque while tightening
remaining bolts.
- Slide side trim covers onto inside edge of glass lid assembly.
- After installation, check sunroof operation and glass lid assembly
alignmen
SUNSHADE
Removal
- Remove sunroof unit assembly. Refer to RF-72, "Exploded View".
- Remove glass lid assembly. Refer to RF-72, "Removal and
Installation".
- Remove the sunshade stoppers (1) (LH/RH) from the sunroof unit
assembly side rails (2).
Front
- Slide sunshade rearward past sunroof unit assembly side rail
ends to remove.
Installation
Installation is in the reverse order of removal.
SUNROOF MOTOR ASSEMBLY
Removal
- Close glass lid assembly.
- Remove front room/map lamp assembly from headlining (4).
Refer
to INL-84, "Removal and Installation".
Front
- Remove sunroof motor assembly screws (A).
- Disconnect harness connector (2) and remove sunroof motor
assembly (1) from sunroof unit assembly front end rail.
CAUTION: Do not run the removed sunroof
motor assembly as a single unit.
Installation
- Move sunroof motor assembly laterally little by little so that the gear
is completely engaged into the wire on the sunroof unit assembly, and the
mounting surfaces become parallel. Install the sunroof motor assembly
screws, and tighten to the specified torque.
CAUTION:
Before installing the motor, be sure to place the link and wire assembly in
the symmetrical and fully closed position.
NOTE:
If necessary, insert a suitable tool into the drive key (3) and rotate right
or left slightly to assist in complete sunroof motor gear alignment.
Remainder of installation is in the reverse order of removal.
- Synchronize sunroof motor with sunroof unit assembly.
