Diagnosis Description
AUTO ACTIVE TEST
Description
In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.
Operation Procedure
CAUTION: Close front door RH.
NOTE: When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.
CAUTION:
Inspection in Auto Active Test Mode

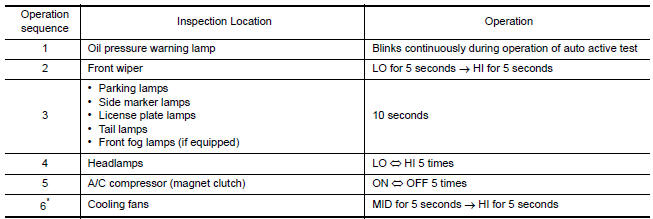

When auto active test mode is actuated, the following 6 steps are repeated 3 times.
*: Outputs duty ratio of 50% for 5 seconds → duty ratio of 100% for 5 seconds on the cooling fan control module.

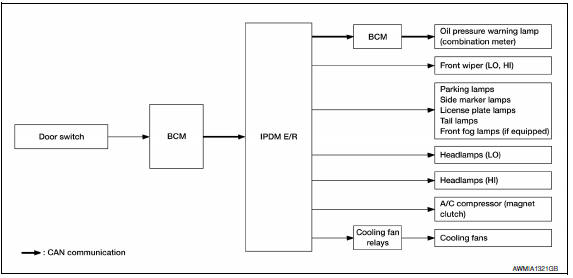

Concept of auto active test
Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto active test starts successfully.

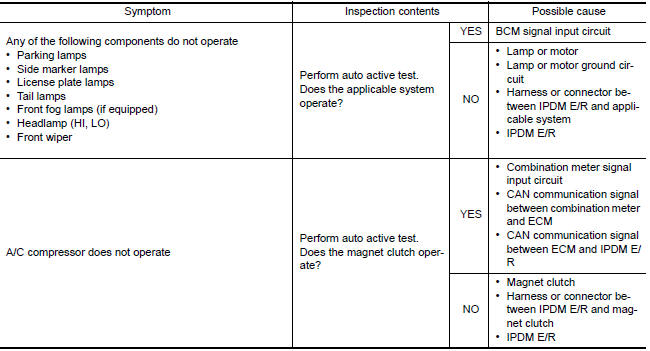

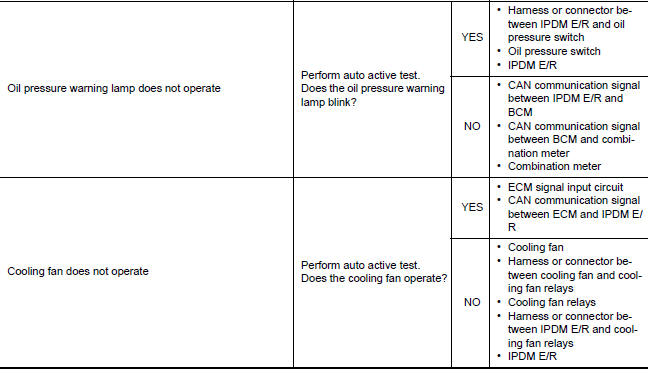

Diagnosis chart in auto active test mode
CONSULT Function (IPDM E/R)
APPLICATION ITEM

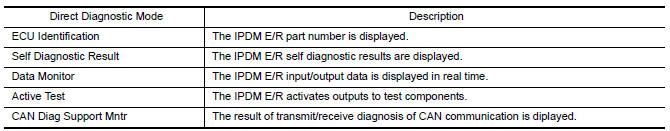

CONSULT performs the following functions via CAN communication with IPDM E/R.
ECU IDENTIFICATION
The IPDM E/R part number is displayed.
SELF DIAGNOSTIC RESULT
Refer to PCS-27, "DTC Index".

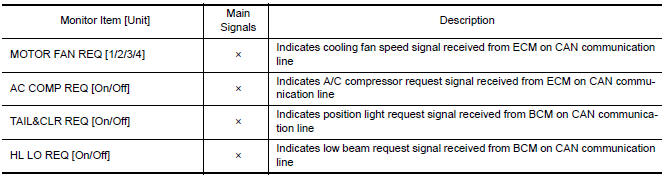

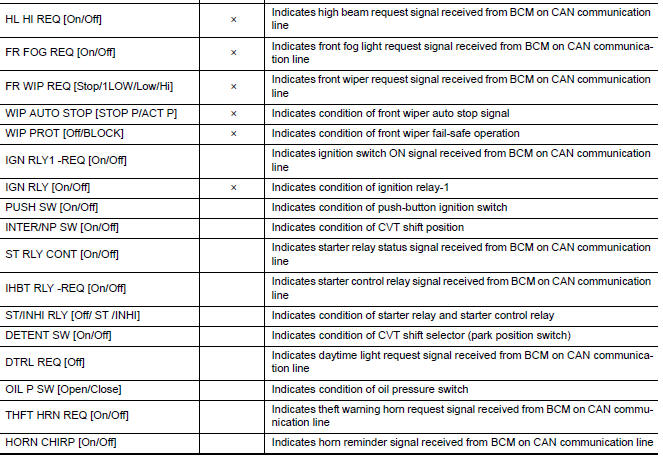

DATA MONITOR

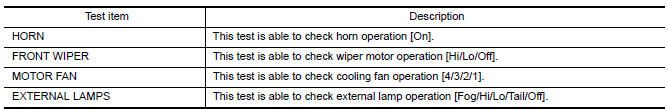

ACTIVE TEST
CAN DIAG SUPPORT MNTR
Power supply and ground circuit
Diagnosis Procedure
1. CHECK FUSE AND FUSIBLE LINK
Check if the following BCM fuses or fusible link are blown
2. CHECK POWER SUPPLY CIRCUIT
Turn ignition switch OFF.
Disconnect BCM.
Check voltage between BCM harness connector and ground.
3. CHECK GROUND CIRCUIT
Check continuit ...
