Nissan Maxima Service and Repair Manual: Parking, license plate and tail lamps system

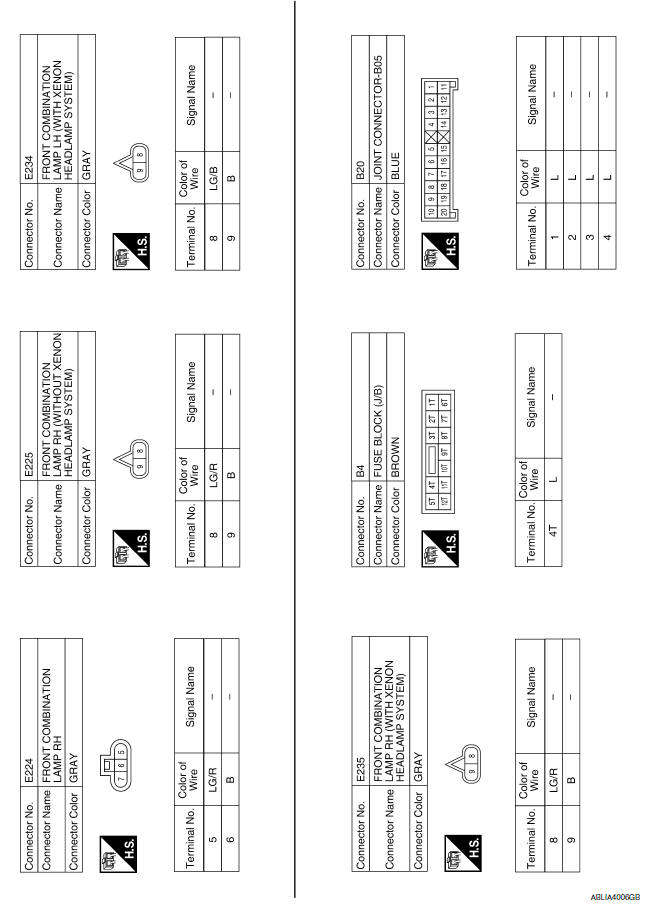

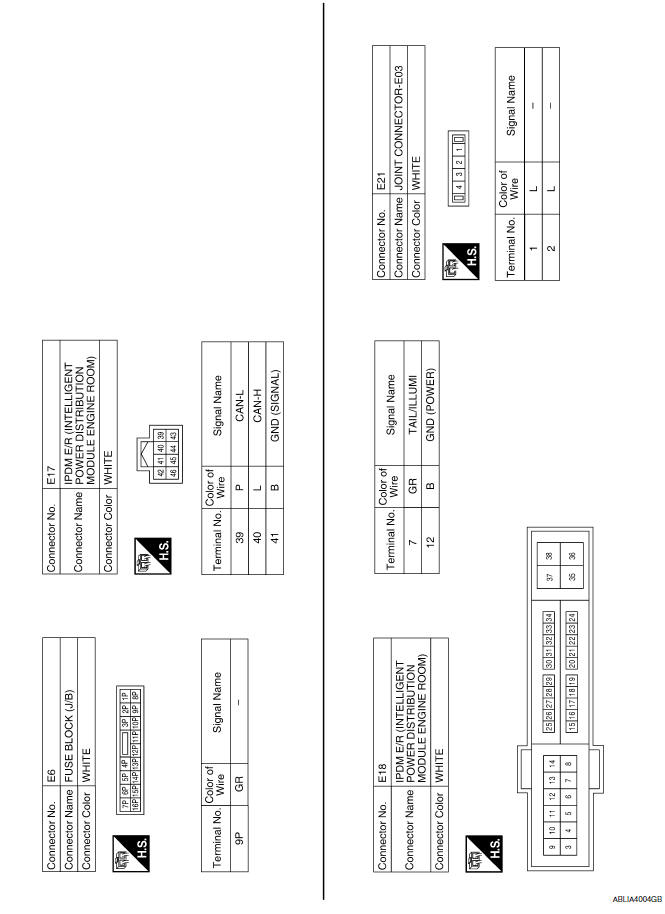

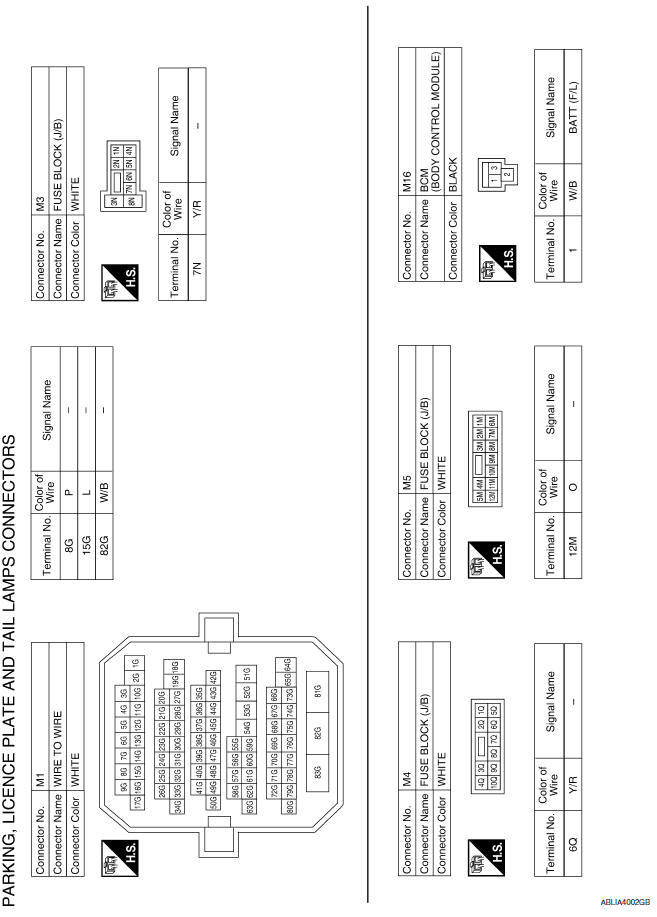

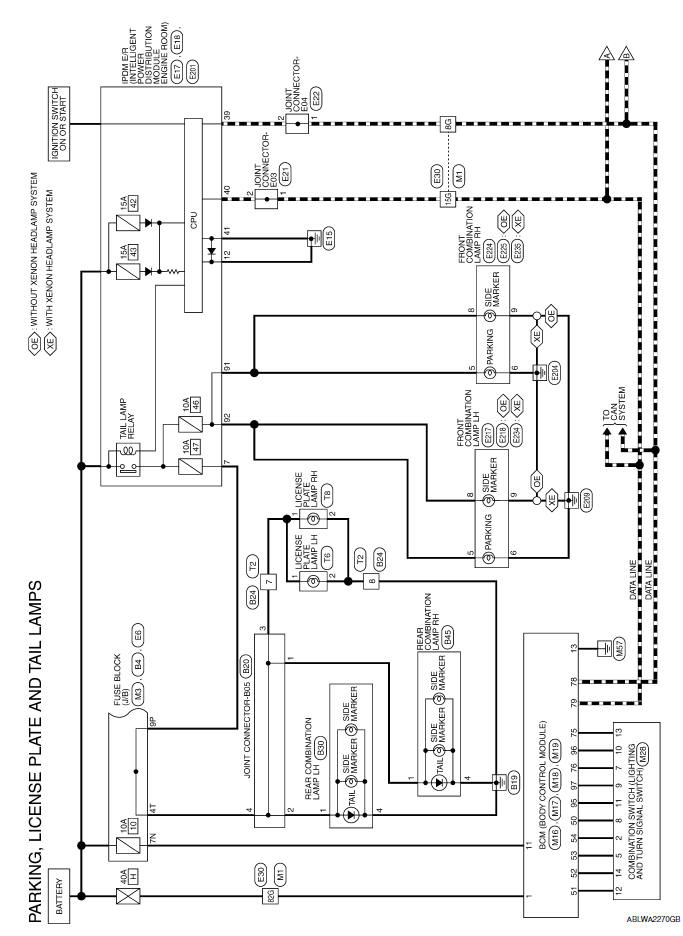

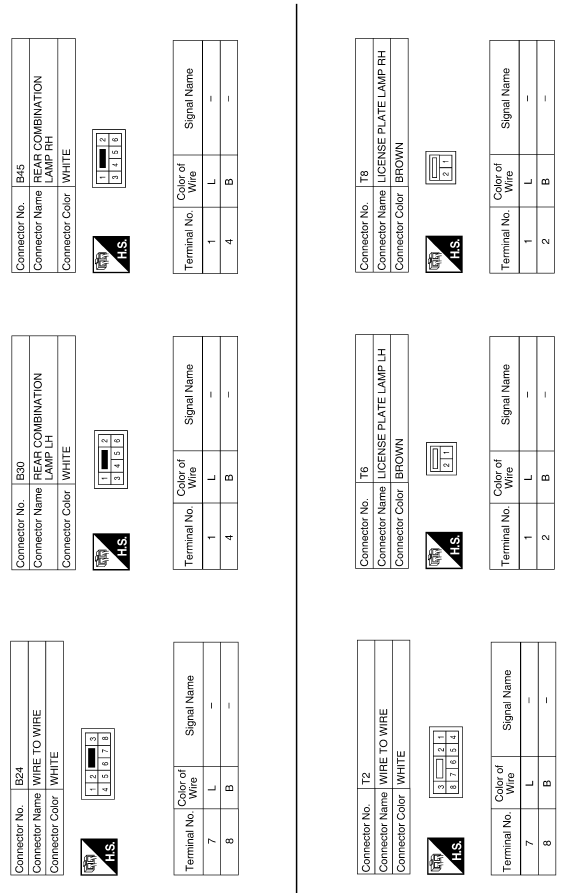

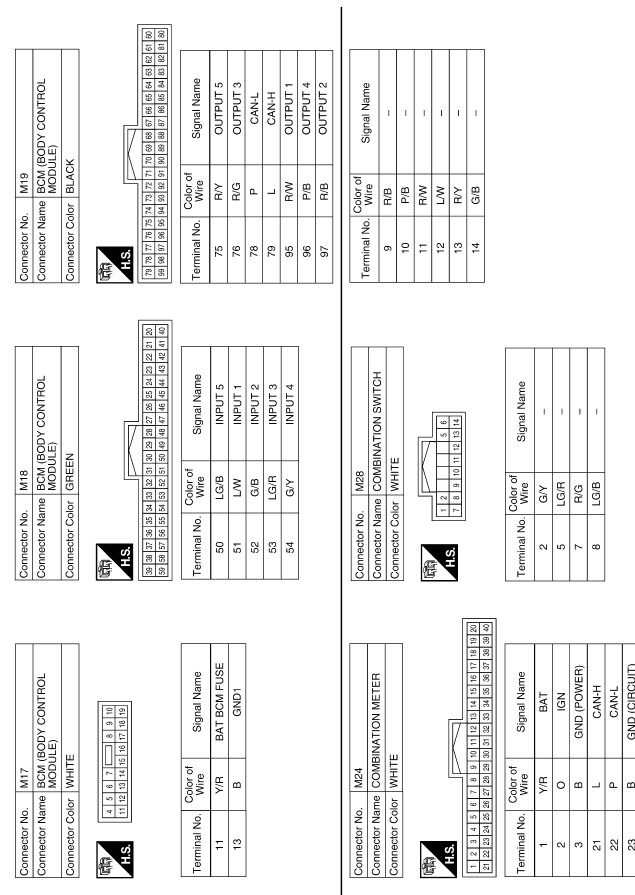

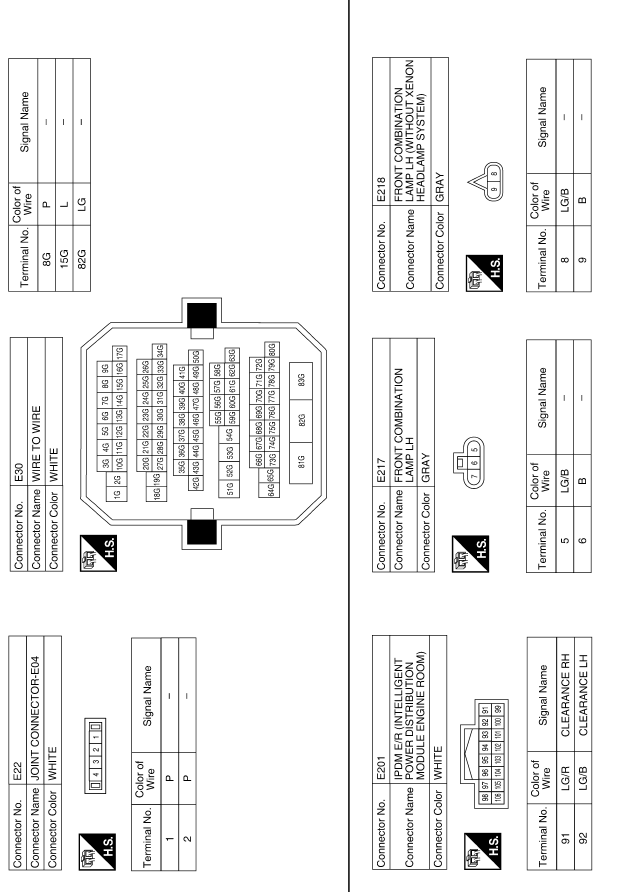

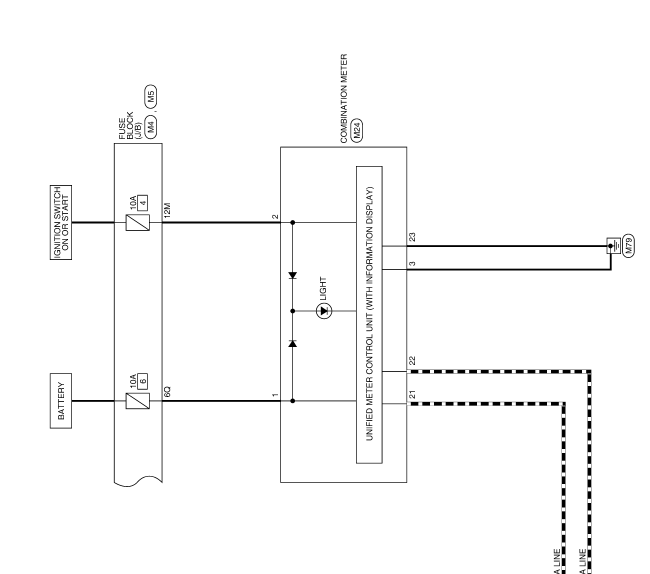

Wiring Diagram

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Nissan Maxima. PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

    Turn signal and hazard warning lamp system
    Wiring Diagram ...

    Stop lamp
    Wiring Diagram ...
