Nissan Maxima Service and Repair Manual: Front combination lamp
Disassembly and Assembly

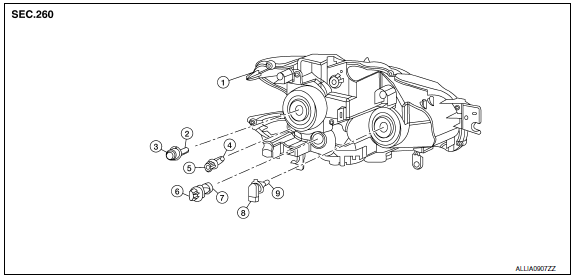

EXPLODED VIEW
- Front combination lamp
- Halogen bulb (low beam)
- Halogen bulb socket (low beam)
- Side marker lamp bulb
- Side marker lamp socket
- Front turn signal lamp socket
- Front turn signal lamp bulb
- Halogen bulb socket (high beam)
- Halogen bulb (high beam)
DISASSEMBLY
- Rotate the halogen bulb socket (low beam) counterclockwise and unlock it.
- Remove the bulb from halogen bulb socket (low beam).
- Rotate the halogen bulb socket (high beam) counterclockwise and unlock it.
- Remove the bulb from halogen bulb socket (high beam).
- Rotate the front turn signal lamp socket counterclockwise and unlock it.
- Remove the bulb from front turn signal lamp socket.
- Rotate the front side marker lamp socket counterclockwise and unlock it.
- Remove the bulb from front side marker lamp socket.
ASSEMBLY
Assembly is in the reverse order of disassembly.
Rear combination lamp
Disassembly and Assembly
Rear combination lamp
Rear side marker lamp socket
Rear side marker lamp bulb
Rear turn signal lamp socket
Rear turn signal lamp bulb
Back-up lamp socket ...
