Nissan Maxima Service and Repair Manual: Wiring diagram

ECU diagnosis information

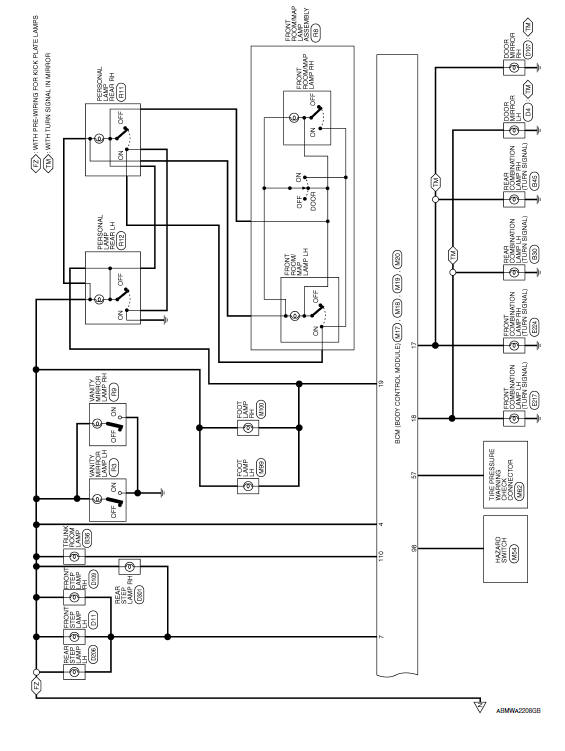

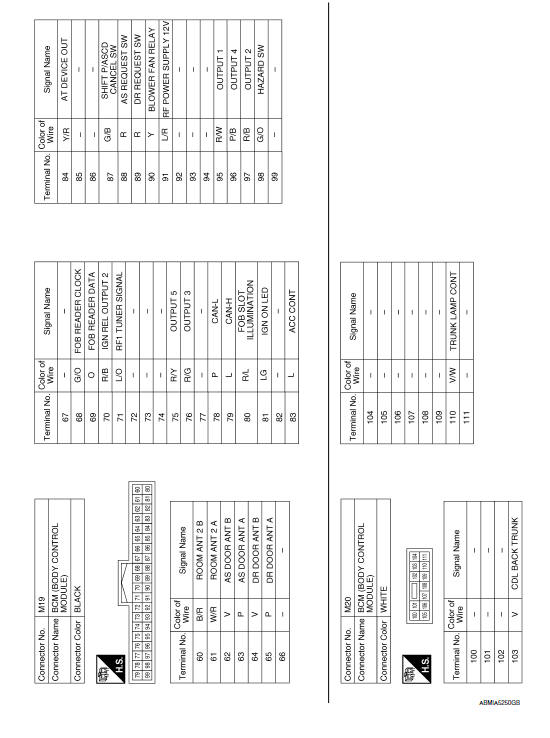

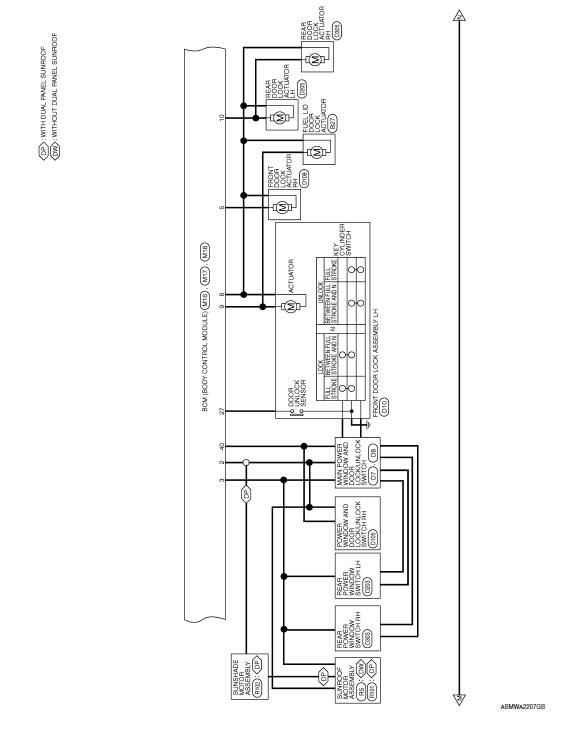

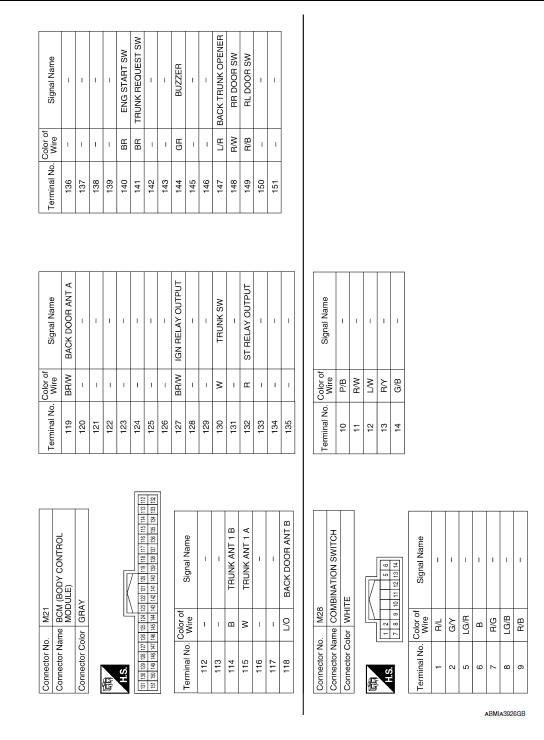

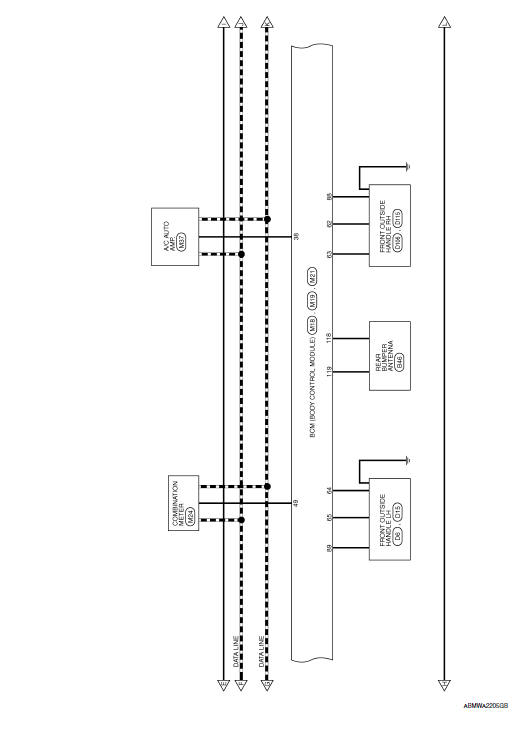

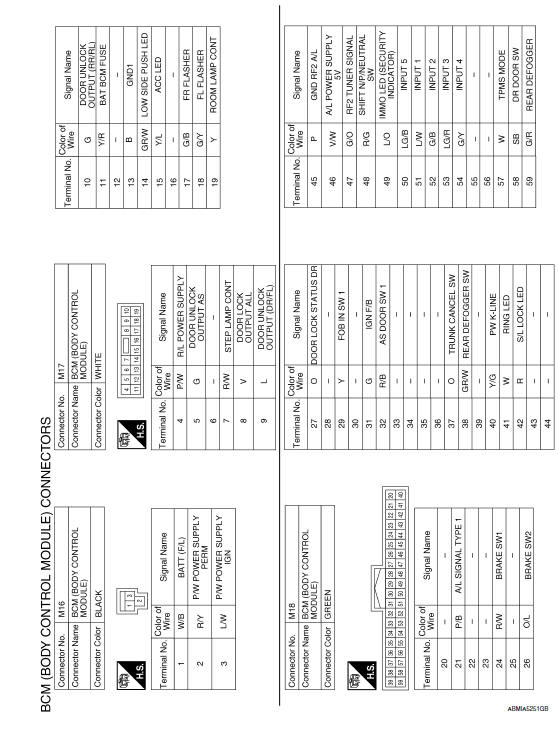

BCM (BODY CONTROL MODULE) Reference Value NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional informat ...

Combination switch system symptoms

SYMPTOM DIAGNOSIS COMBINATION SWITCH SYSTEM SYMPTOMS Symptom Table Perform the data monitor of CONSULT to check for any malfunctioning item. Check the malfunction combinations Ide ...

Other materials:

IPDM E/R (intelligent power distribution module engine room)

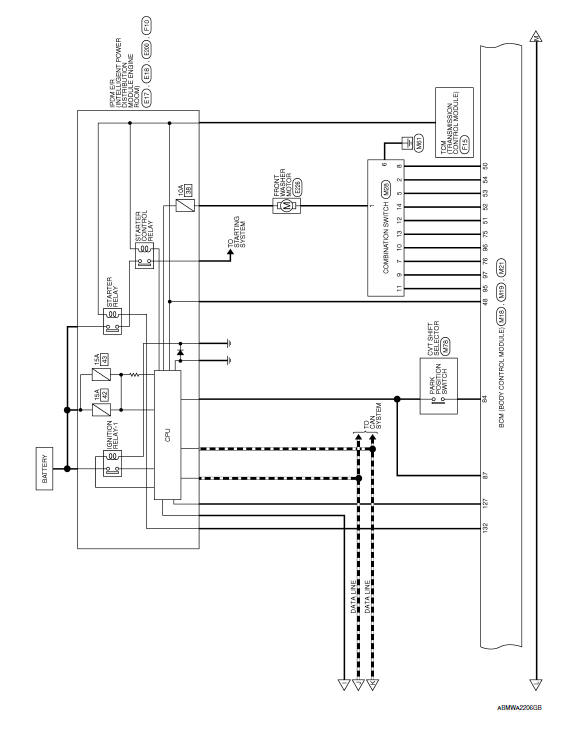

Reference Value VALUES ON THE DIAGNOSIS TOOL TERMINAL LAYOUT Fail Safe CAN COMMUNICATION CONTROL When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN communication recovers normally, it also returns to normal control. If No ...

Horn function
Description Perform answer-back for each operation with horn. Component Function Check 1. CHECK FUNCTION Select HORN in "ACTIVE TEST" mode with CONSULT. Check the horn (high/low) operation. Diagnosis Procedure 1. CHECK HORN FUNCTION Check horn function with horn switch 2. CHECK ...

Audio system
SYSTEM DESCRIPTION AUDIO SYSTEM System Diagram System Description AUDIO SYSTEM The audio system consists of the following components Audio unit Display unit Bluetooth control unit Window antenna Steering wheel audio control switches Front door speakers Tweeters Rear door s ...
