Diagnosis Procedure
1. CHECK FUSES AND FUSIBLE LINK
Check that the following IPDM E/R fuses or fusible link are not blown.

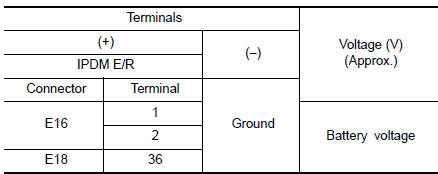

2. CHECK POWER SUPPLY CIRCUIT
3. CHECK GROUND CIRCUIT

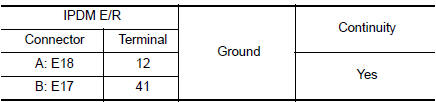

Check continuity between IPDM E/R harness connectors and ground.
