Nissan Maxima Service and Repair Manual: Audio unit
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
Display unit
Reference Values

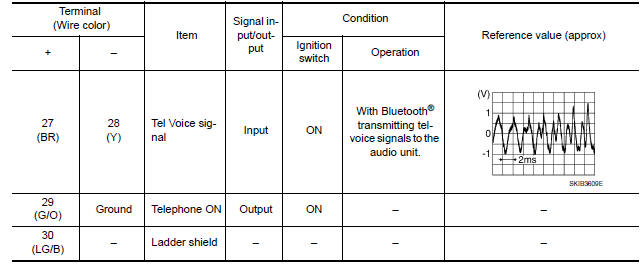

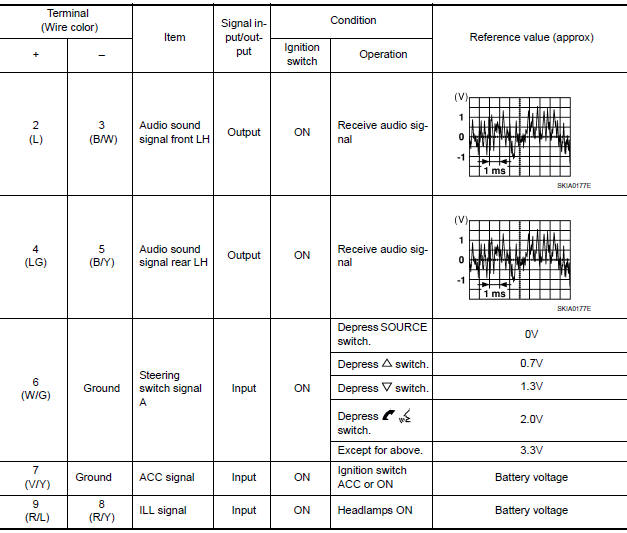

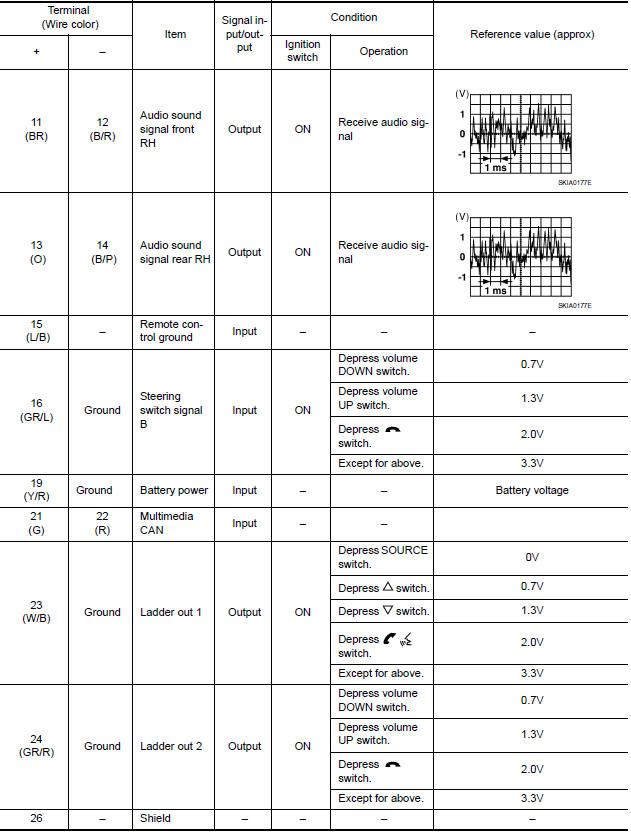

TERMINAL LAYOUT
PHYSICAL VALUES
...
