WARNING

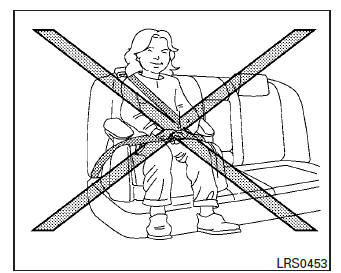

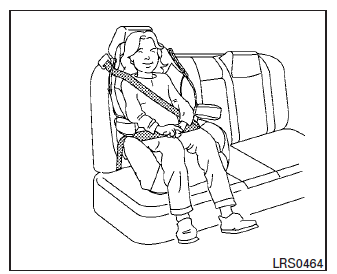

If a booster seat and seat belt are not used properly, the risk of a child being injured or killed in a sudden stop or collision greatly increases:

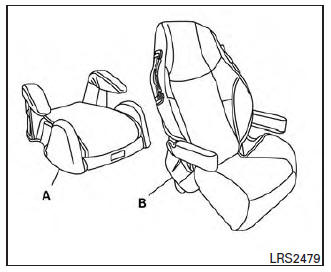

A. Low back booster seat
B. High back booster seat
Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:
All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.
The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.
