Nissan Maxima Service and Repair Manual: Overheating cause analysis

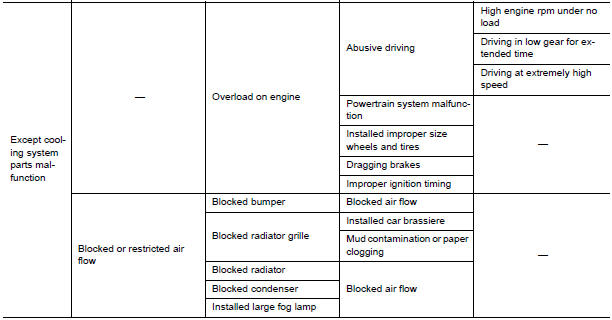

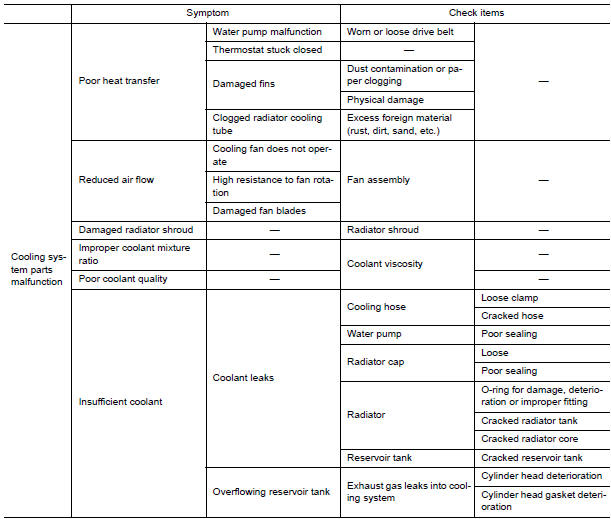

Troubleshooting Chart

Nissan Maxima. Troubleshooting Chart

Nissan Maxima. Troubleshooting Chart

    System description
    ...

    Cooling system
    Cooling Circuit Cylinder block (RH) Oil cooler Cylinder head (RH) Water pump Radiator Water inlet Thermostat Cylinder head (LH) Cylinder block (LH)  To heater T ...
