Nissan Maxima Service and Repair Manual: Basic inspection

INSPECTION AND ADJUSTMENT

Operational Check

DESCRIPTION

The purpose of the operational check is to check that the individual system operates normally.

Conditions: Engine running at normal operating temperature

INSPECTION PROCEDURE

1.CHECK MEMORY FUNCTION

  1. Start the engine.
  2. Operate the temperature control dial (driver side) and raise the temperature setting to 32C (90F).
  3. Press the OFF switch.
  4. Turn the ignition switch OFF.
  5. Turn the ignition switch ON.
  6. Press the AUTO switch.
  7. Check that the temperature setting, before turning the ignition switch OFF, is stored.

2.CHECK BLOWER MOTOR SPEED

  1. Operate the fan control dial. Check that the fan speed changes.
  2. Check the operation for all fan speeds.

3.CHECK DISCHARGE AIR (MODE SWITCH AND DEF SWITCH)

  1. Press the MODE switch and the DEF switch.
  2. Check that the air outlets change according to each indicated air outlet by placing a hand in front of the outlets. Refer to HAC-11, "System Description".

NOTE: Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at FRE ( ) when the D/F ( ) or DEF ( ) is selected.

4.CHECK INTAKE AIR

  1. Press the REC () switch. Indicator is turned ON.
  2. Press the FRE ( ) switch. Indicator is turned ON.
  3. Listen for the intake door position change. (Slight change of blower sound can be heard.)

NOTE: Confirm that the compressor clutch is engaged (sound or visual inspection) and the FRE ( ) switch is pressed when the D/F ( ) or DEF ( ) is selected.

5.CHECK A/C SWITCH

  1. Press the A/C switch.
  2. The A/C switch indicator is turned ON

Confirm that the compressor clutch engages (sound or visual inspection).

6.CHECK TEMPERATURE DECREASE

  1. Operate the compressor.
  2. Operate the temperature control switch (driver side) and lower the temperature setting to 18C (60F).
  3. Check that the cool air blows from the outlets.

7.CHECK TEMPERATURE INCREASE

  1. Operate the temperature control dial (driver side) and raise the temperature setting to 32C (90F) after warming up the engine.
  2. Check that the warm air blows from the outlets.

8.CHECK DUAL MODE FUNCTION

  1. Press the DUAL mode switch, and then check that "DUAL" is shown on the display.
  2. Operate the temperature control dial (driver side). Check that the discharge air temperature (driver side) changes.
  3. Operate the temperature control dial (passenger side). Check that the discharge air temperature (passenger side) changes.
  4. Press the DUAL mode switch, and then check that the temperature setting (driver/passenger) is unified to the driver side temperature setting.

9.CHECK AUTO MODE

  1. Press the AUTO switch, and then check that "AUTO" is shown on the display.
  2. Operate the temperature control dial (driver side). Check that the fan speed, outlet air or intake air changes. (The discharge air temperature or fan speed varies depending on the ambient temperature, invehicle temperature, and temperature setting.)

Temperature Setting Trimmer

Description

If the temperature felt by the customer is different than the airflow temperature controlled by the temperature setting, the auto amplifier control temperature can be adjusted to compensate for the temperature setting.

How to set

Using CONSULT, perform "TEMP SET CORRECT" in "WORK SUPPORT" of HVAC.

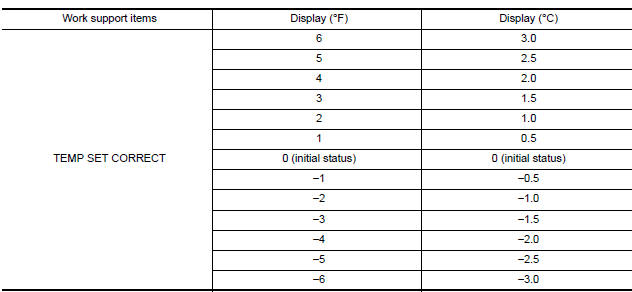

Nissan Maxima. Foot Position Setting Trimmer

NOTE:

  • When the temperature setting is set to 25.0C (77F) and −3.0C (−6F), the temperature controlled by auto amp is 25.0C (77F) − 3.0C (6F) = 22.0C (71F) and the temperature becomes lower than the temperature setting.
  • When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the difference between the temperature setting and control temperature may be cancelled.

Foot Position Setting Trimmer

Description

In the FOOT mode, the air blowing to the DEF can be turned ON/OFF.

How to set

Using CONSULT, perform "BLOW SET" in "WORK SUPPORT" of HVAC.

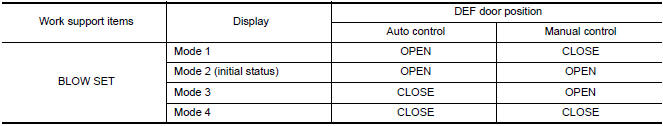

Nissan Maxima. Foot Position Setting Trimmer

NOTE: When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the discharge air mix ratio in FOOT mode may be cancelled.

Inlet Port Memory Function (FRE)

Description

  • If the ignition switch is turned to the OFF position while the FRE ( ) switch is set to ON (fresh air intake), "Perform the memory" or "Do not perform the memory" of the FRE ( ) switch ON (fresh air intake) condition can be selected.
  • If "Perform the memory" was set, the FRE ( ) switch will be ON (fresh air intake) when turning the ignition switch to the ON position again.
  • If "Do not perform the memory" was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

How to set

Using CONSULT, perform "FRE MEMORY SET" in "WORK SUPPORT" of HVAC.

Nissan Maxima. How to set

NOTE: When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the FRE switch memory function may be cancelled.

Inlet Port Memory Function (REC)

Description

  • If the ignition switch is turned to the OFF position while the REC ( ) switch is set to ON (recirculation), "Perform the memory" or "Do not perform the memory" of the REC ( ) switch ON (recirculation) condition can be selected.
  • If "Perform the memory" was set, the REC ( ) switch will be ON (recirculation) when turning the ignition switch to the ON position again.
  • If "Do not perform the memory" was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

How to set

Using CONSULT, perform "REC MEMORY SET" in "WORK SUPPORT" of HVAC.

Nissan Maxima. How to set

NOTE: When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the REC switch memory function may be cancelled.

    Heater & air conditioning control system
    ...

    System description
    COMPRESSOR CONTROL FUNCTION Description PRINCIPLE OF OPERATION Compressor is not activated. Functional circuit diagram CAN (1): A/C switch signal : Blower fan motor switch signal CAN (2): A ...
