Nissan Maxima Service and Repair Manual: Wiring diagram
AIR CONDITIONER CONTROL

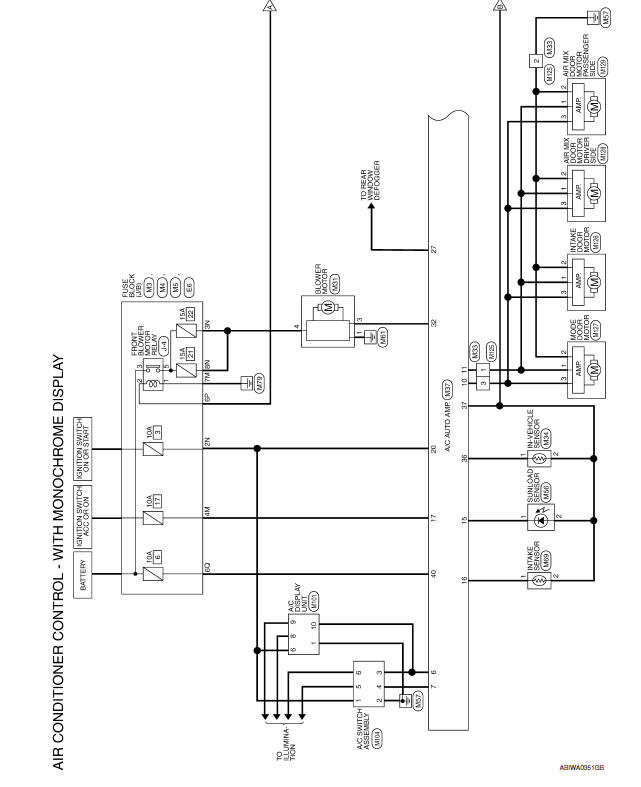

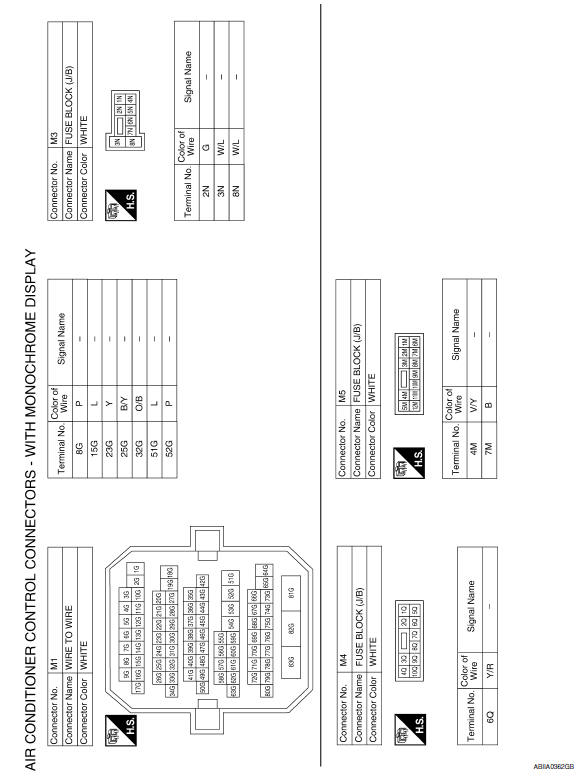

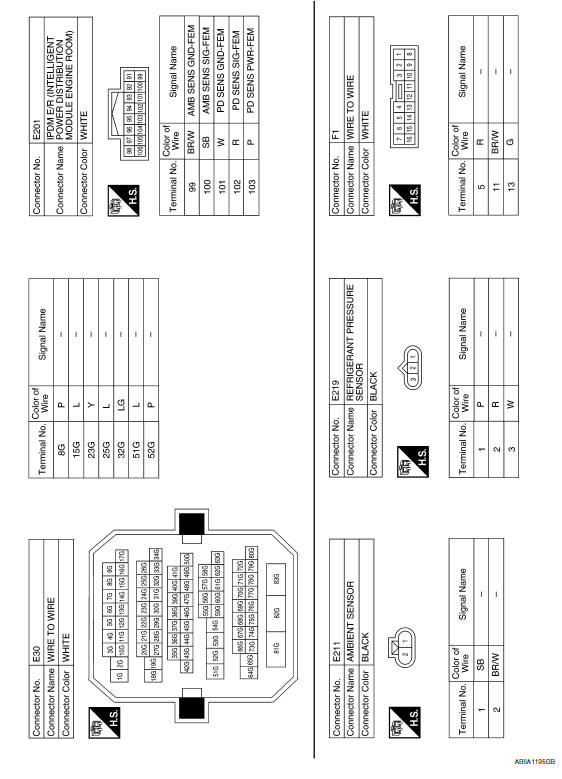

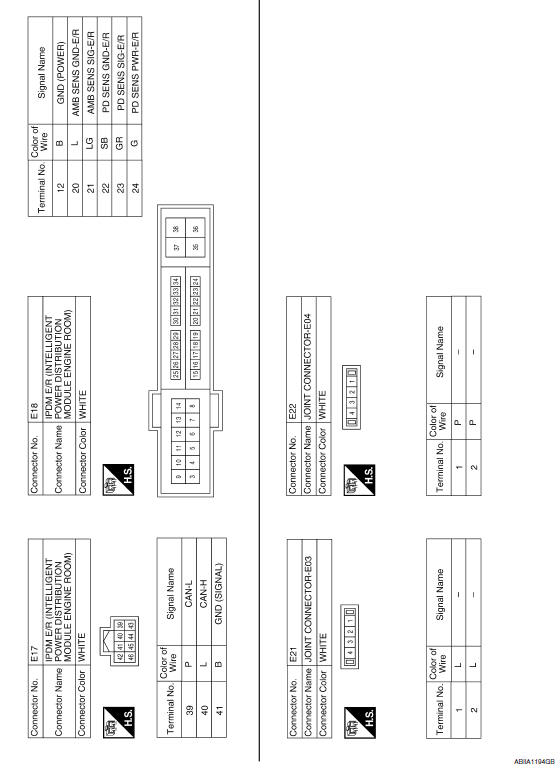

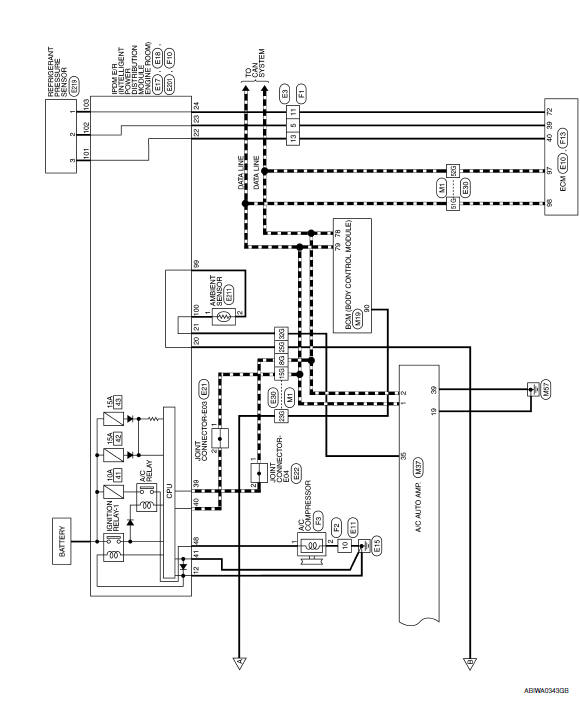

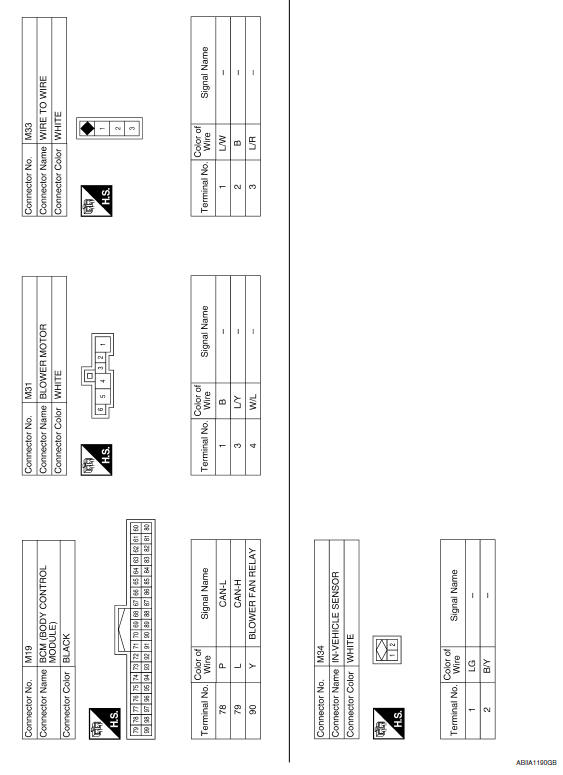

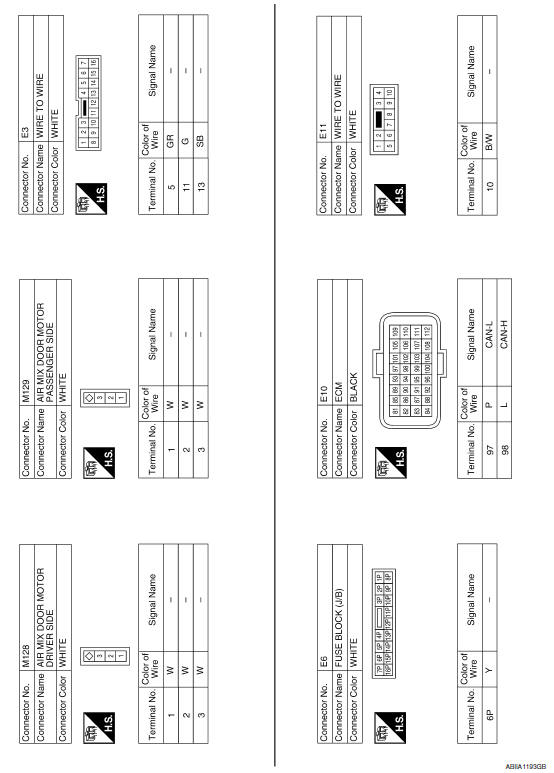

Wiring Diagram - With Monochrome Display
ECU diagnosis information
A/C AUTO AMP.
Reference Value
VALUES ON THE DIAGNOSIS TOOL
CONSULT MONITOR ITEM

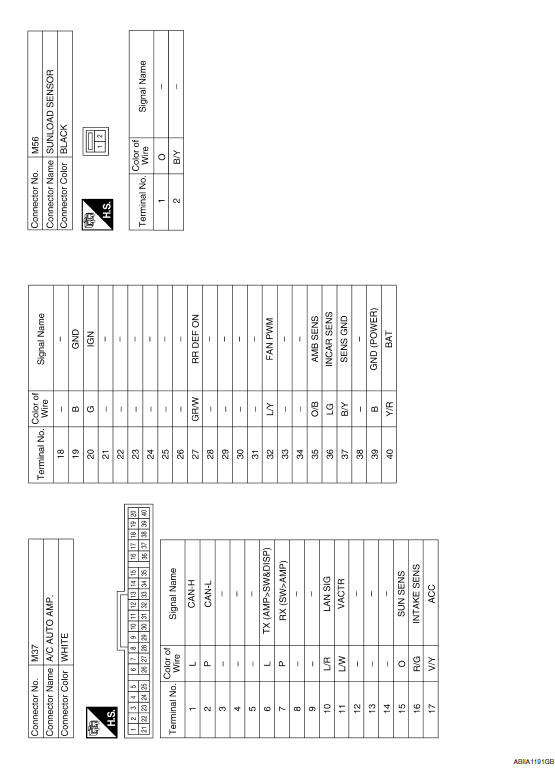

A/C AUTO AMP. HARNESS CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUES FOR A/C AUTO AMP.
