Nissan Maxima Service and Repair Manual: Diagnosis system (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)
APPLICATION ITEM

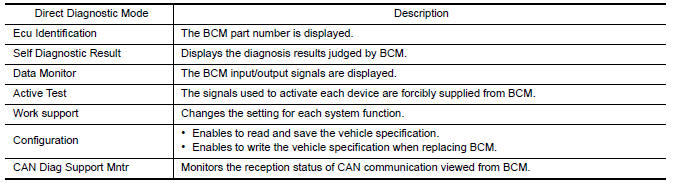

CONSULT performs the following functions via CAN communication with BCM.

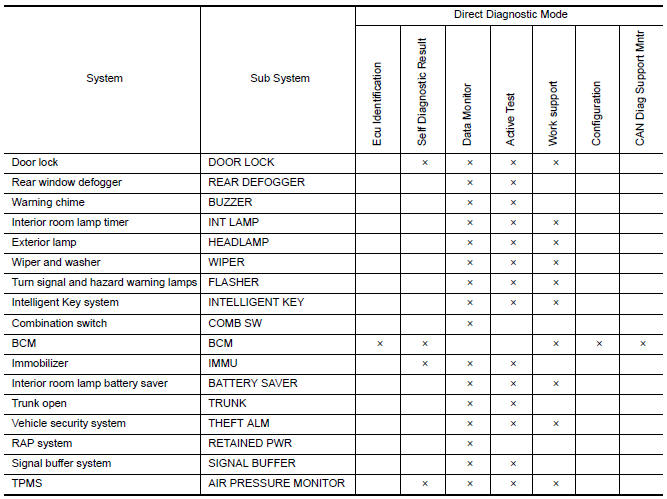

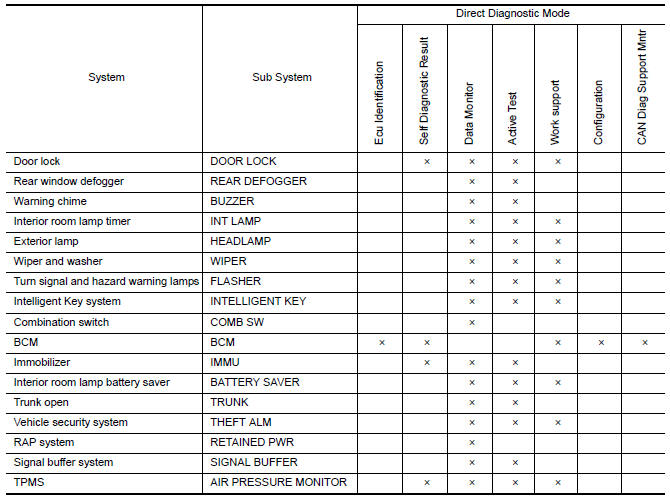

SYSTEM APPLICATION
BCM can perform the following functions.
INTELLIGENT KEY
INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

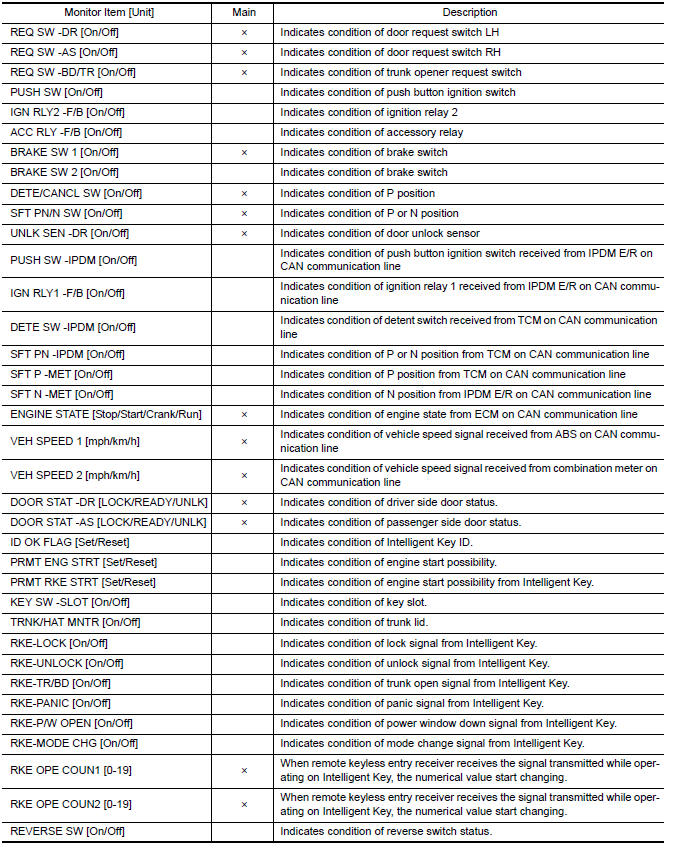

DATA MONITOR

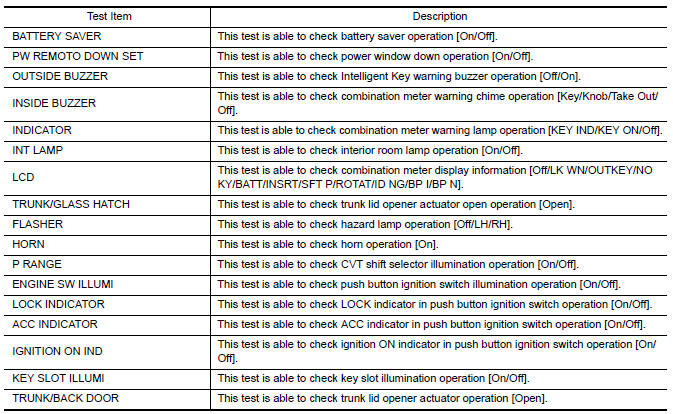

ACTIVE TEST

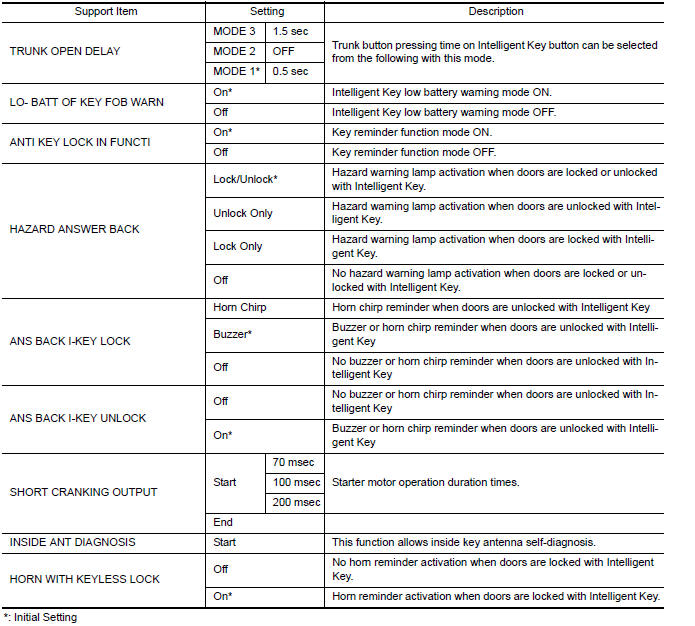

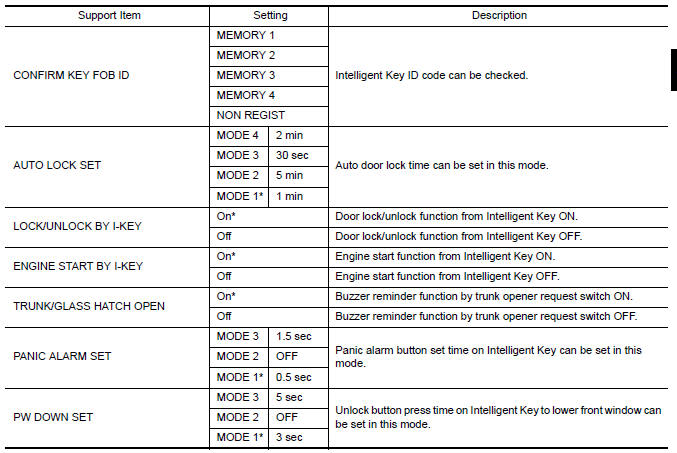

WORK SUPPORT
IMMU
IMMU : CONSULT Function (BCM - IMMU)
SELF DIAGNOSTIC RESULT
Refer to BCS-64, "DTC Index".

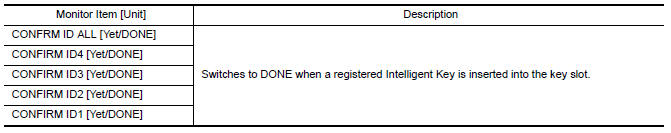

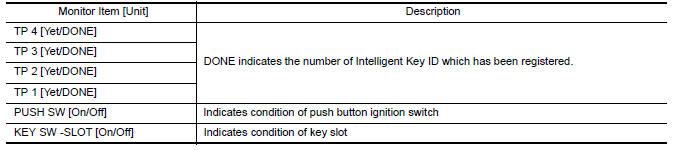

DATA MONITOR
ACTIVE TEST
THEFT ALM
THEFT ALM : CONSULT Function (BCM - THEFT ALM)

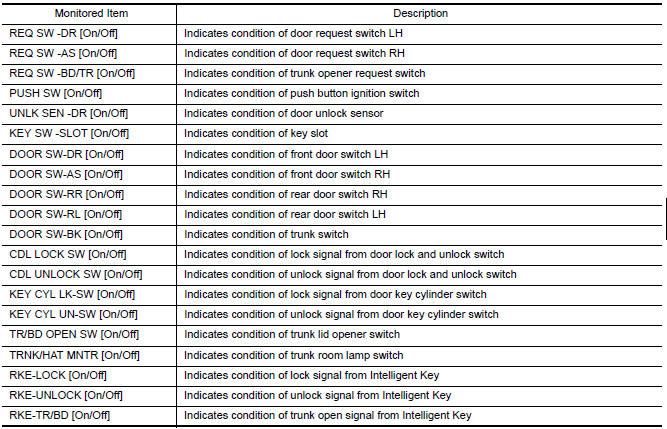

DATA MONITOR

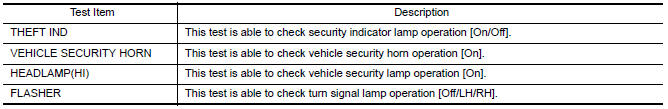

ACTIVE TEST

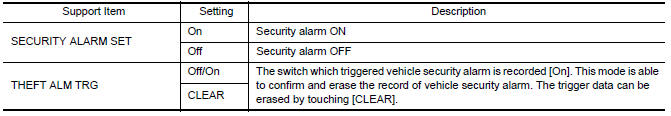

WORK SUPPORT
Vehicle security system
System Diagram
System Description
INPUT/OUTPUT SIGNAL CHART
OPERATION FLOW
SETTING THE VEHICLE SECURITY SYSTEM
Initial Condition
Ignition switch is in OFF position.
Disar ...
