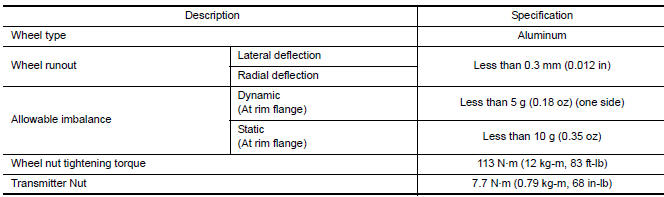

Road Wheel

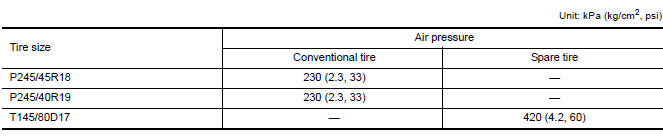

Tire
IPDM E/R (intelligent power distribution module engine room)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
Fail Safe
CAN COMMUNICATION CONTROL
When CAN communication with ECM and BCM is impossible, IPDM E/R performs
fail-safe control. After CANcommunication recovers normally, it also returns
to norm ...
Removal and installation
COMPRESSOR
Removal and Installation for Compressor
REMOVAL
CAUTION: Before servicing, turn the ignition
switch off, disconnect both battery terminals and wait at least three
minutes.
Disconnect the battery negative and positive terminals. Refer to
PG-67, "Removal and Installation ( ...
Electronic controlled engine mount
System Diagram
System Description
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM via the CAN communication line.
SYSTEM DESCRIPTION
The ECM controls the engine mount operation corresponding to the engine
speed. The control system has a
2-step control [Soft/Hard]
EL ...
